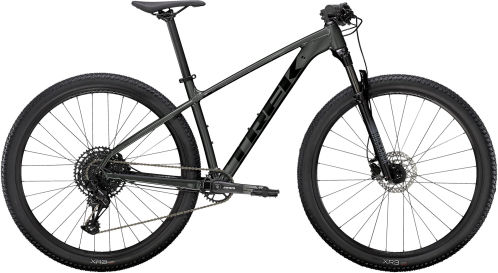

Trek X-Caliber 8
Serie: X-Caliber - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | SRAM SX Eagle, 12-speed |
|---|---|

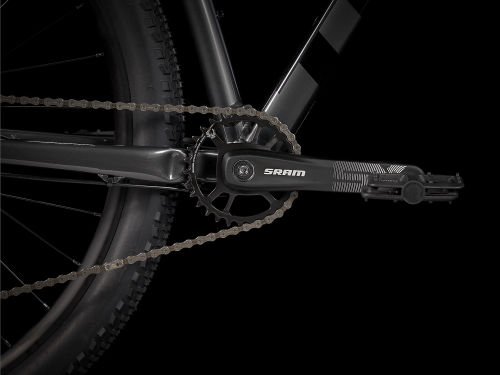

| Crank | Size: XS, SSRAM SX Eagle, GXP, 30T steel ring, Boost, 170 mm length - Size: M, M/L, L, XL, XXLSRAM SX Eagle, GXP, 30T steel ring, Boost, 175 mm length |

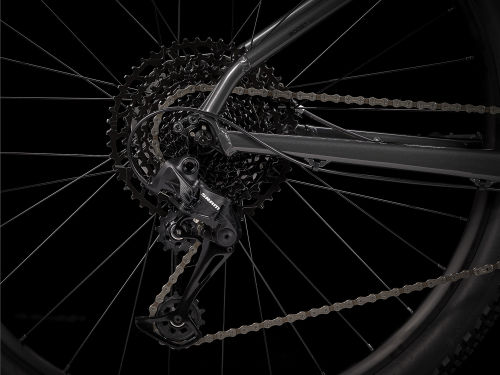

| Derailleurs | Rear: SRAM SX Eagle |
| Shifters | SRAM SX Eagle, 12-speed |

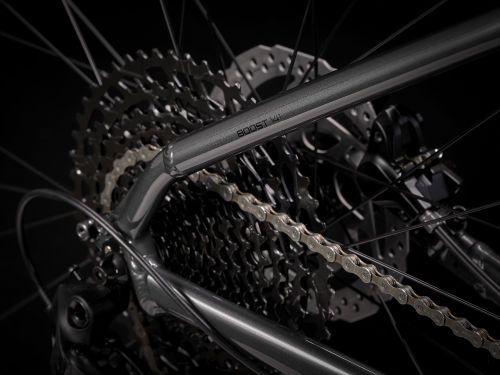

| Cassette | SRAM PG-1210 Eagle, 11-50, 12-speed |
Frameset

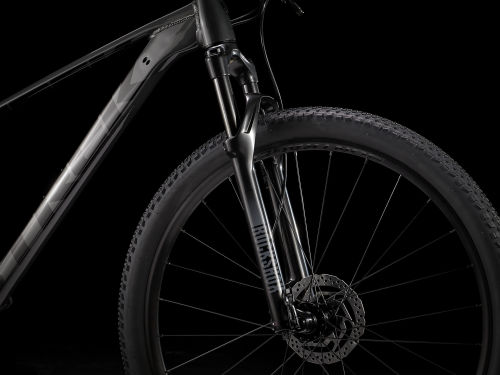

| Fork | Size: XSRockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Lite, 80 mm travel - Size: S, M, M/L, L, XL, XXLRockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 100 mm travel |
|---|---|

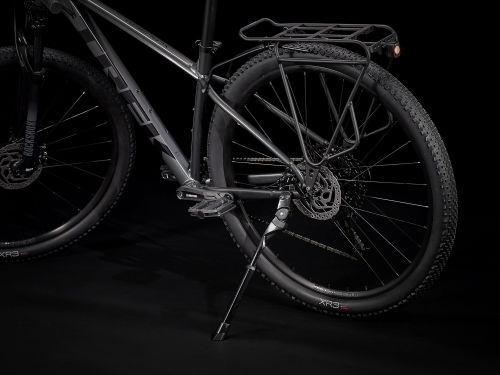

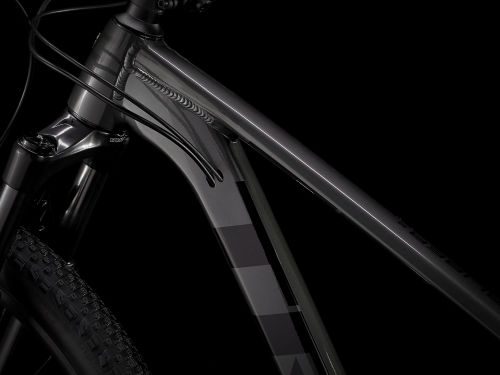

| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR |
| Headset | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
| Size: XS, SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: M/L, LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL, XXLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Formula DCL-141Q, sealed bearing, 6-bolt, Shimano 10 freehub, Boost141, 5 mm QR |
|---|---|

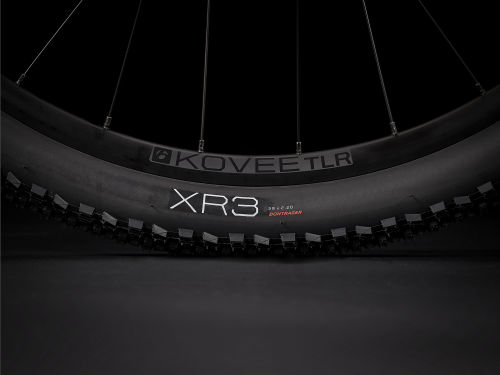

| Rims | Size: XS, S, M, M/L, L, XL, XXLBontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve - Size: XS, S, M, M/L, L, XL, XXLBontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyres | Size: XS, SBontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.20'' - Size: M, M/L, L, XL, XXLBontrager XR3 Comp, wire bead, 30 tpi, 29x2.20" |
Brakes

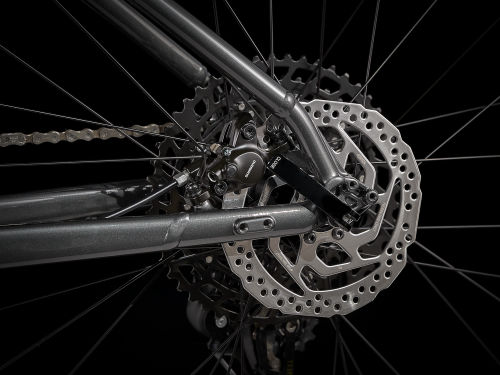

| Brakes | Shimano MT200 hydraulic disc |
|---|
Components

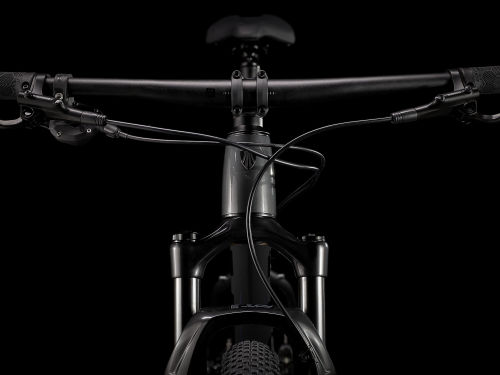

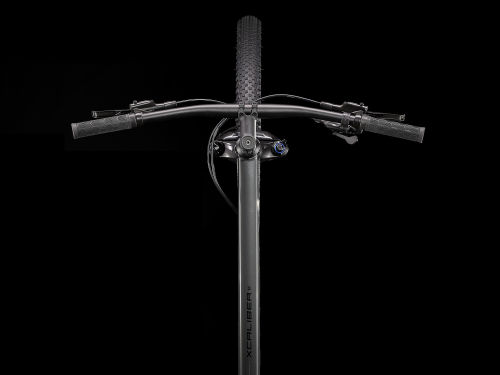

| Handlebar | Size: XSBontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - Size: S, M, M/L, L, XL, XXLBontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS, SBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: MBontrager alloy, 31.6 mm, 12 mm offset, 360 mm length - Size: M/L, L, XL, XXLBontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Stem | Size: XS, SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: M/L, LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL, XXLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Pedals | VP-536 nylon platform |
