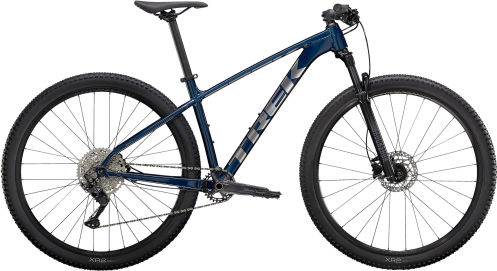

Trek X-Caliber 7
Serie: X-Caliber - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10, 10-speed |
|---|---|

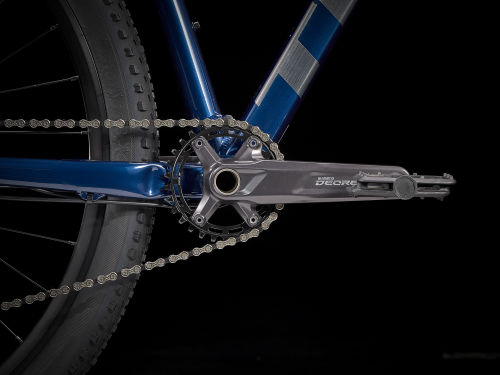

| Crank | Size: XS, S, MShimano Deore M5100, 30T steel ring, Boost, 170 mm length - Size: M/L, L, XL, XXLShimano Deore M5100, 30T steel ring, Boost, 175 mm length |

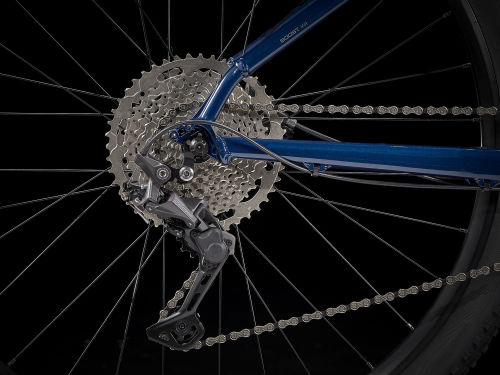

| Derailleurs | Rear: Shimano Deore M5120, long cage |
| Shifters | Shimano Deore M4100, 10 speed |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
Frameset

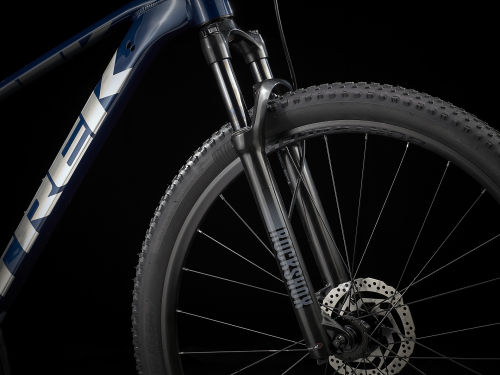

| Fork | Size: XSRockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100x5 mm QR, 80 mm travel - Size: SRockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100x5 mm QR, 100 mm travel - Size: M, M/L, L, XL, XXLRockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 46 mm offset, 100x5 mm QR, 100 mm travel |
|---|---|

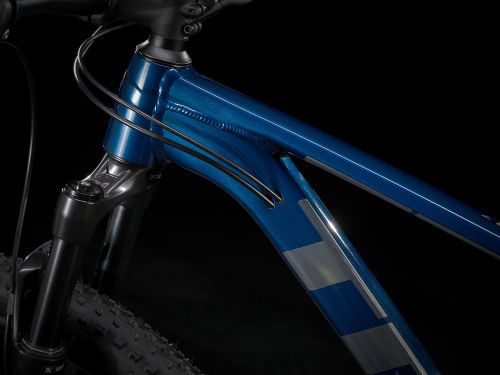

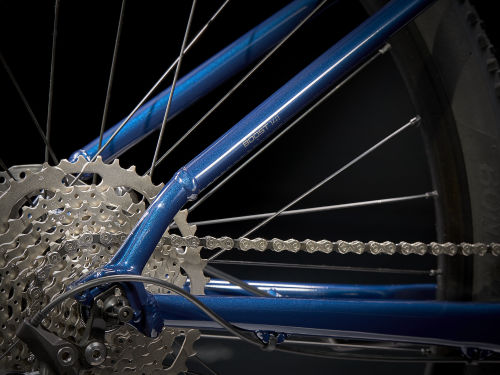

| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR |
| Headset | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
| Size: XS, SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: M/L, LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL, XXLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
Wheels
| Hub | Front: Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew - Rear: Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR |
|---|---|

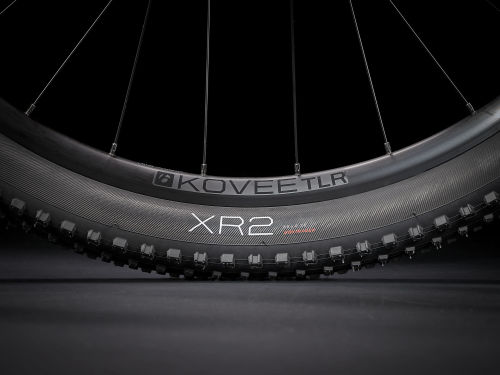

| Rims | Size: XS, S, M, M/L, L, XL, XXLBontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve - Size: XS, S, M, M/L, L, XL, XXLBontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyres | Size: XS, SBontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" - Size: M, M/L, L, XL, XXLBontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
Brakes

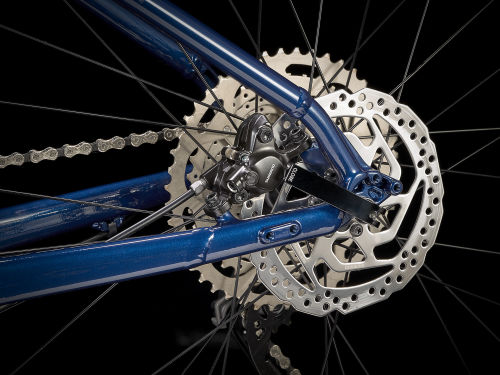

| Brakes | Shimano MT200 hydraulic disc |
|---|
Components

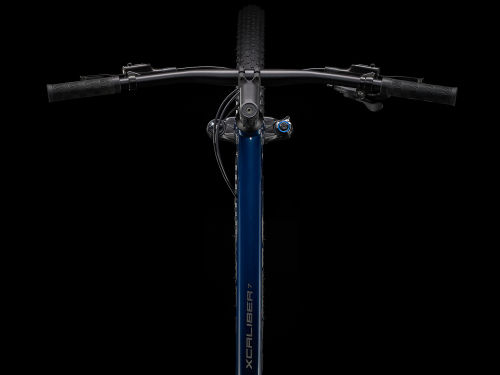

| Handlebar | Size: XSBontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - Size: S, M, M/L, L, XL, XXLBontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS, SBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: MBontrager alloy, 31.6 mm, 12 mm offset, 360 mm length - Size: M/L, L, XL, XXLBontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Stem | Size: XS, SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: M/L, LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL, XXLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Pedals | VP-536 nylon platform |
