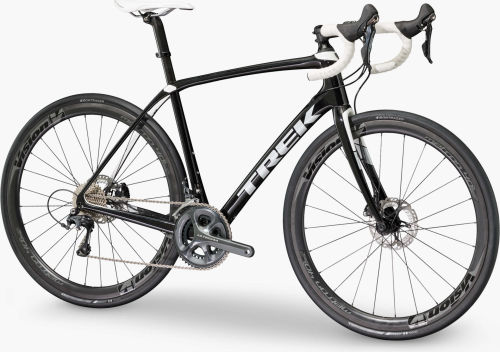

Trek Domane Domane SL 6 Disc

Serie: Domane - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainShimano Ultegra
CrankShimano Ultegra, 50/34 (compact)
DerailleursFront: Shimano Ultegra, braze-on - Rear: Shimano Ultegra
ShiftersShimano RS685, 11-speed
CassetteShimano Ultegra, 11-32, 11-speed

Frameset

ForkDomane carbon disc, E2 tapered steerer, 12mm thru-axle

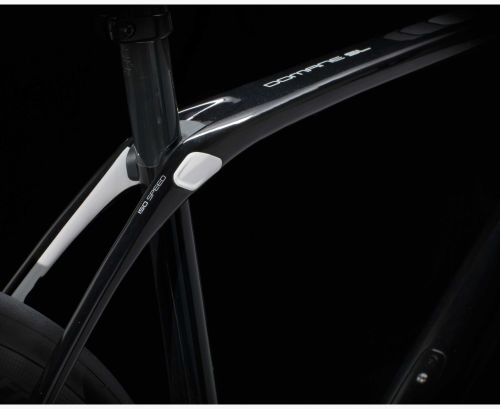

Frame500 Series OCLV Carbon, Front & Rear IsoSpeed, E2 tapered head tube, BB90, Flat Mount disc brakes, Power Transfer Construction, hidden mudguard mounts, internal cable routing, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast

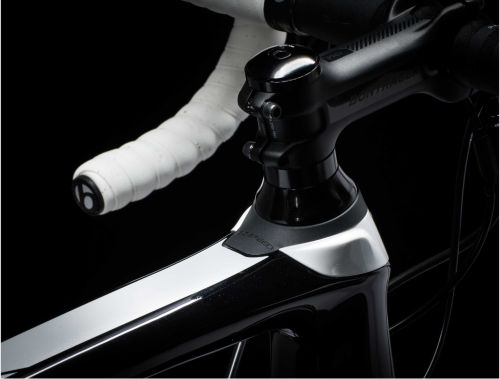

HeadsetIntegrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Bontrager Pro, 31.8mm, 7 degree, w/computer and light mounts

Wheels

TyresBontrager R2 Hard-Case Lite, aramid bead, 700x32c
WheelsVision Metron 40 Disc LTD

Brakes

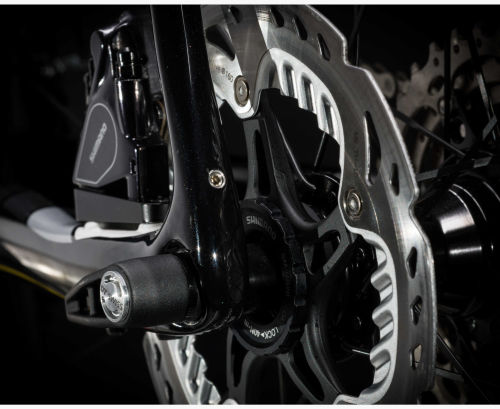

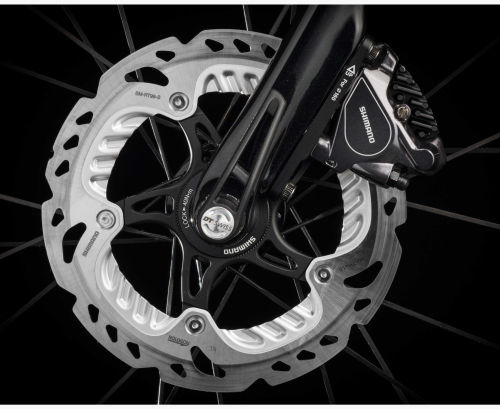

BrakesShimano RS685 hydraulic disc, Flat Mount

Components

HandlebarBontrager Race Lite IsoZone, VR-CF, 31.8mm
SaddleBontrager Affinity Comp, chromoly rails
SeatpostBontrager Ride Tuned carbon seat mast cap, 20mm offset
StemBontrager Pro, 31.8mm, 7 degree, w/computer and light mounts

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle C Head tube length D Head angle E Effective top tube G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Saddle rail height minimum Saddle rail height maximum
50 cm 50 cm 700c 45.0 74.6° 13.0 71.1° 51.9 8.0 42.0 5.3 6.0 99.6 71.6 36.8 54.6 58.5 68.0
52 cm 52 cm 700c 47.5 74.2° 14.5 71.3° 53.0 8.0 42.0 5.3 5.9 100.3 73.5 37.1 56.1 61.5 71.0
54 cm 54 cm 700c 50.0 73.7° 16.0 71.3° 54.2 8.0 42.0 5.3 5.9 101.0 75.4 37.4 57.5 64.0 73.5
56 cm 56 cm 700c 52.5 73.3° 17.5 71.9° 55.4 7.8 42.0 4.8 6.1 100.8 77.6 37.7 59.1 67.0 76.5
58 cm 58 cm 700c 54.8 73.0° 19.5 72.0° 56.7 7.8 42.5 4.8 6.0 102.2 79.6 38.0 61.1 69.0 78.5
60 cm 60 cm 700c 56.7 72.8° 22.0 72.1° 57.9 7.5 42.5 4.8 5.9 103.2 81.7 38.3 63.2 71.0 80.5
62 cm 62 cm 700c 58.6 72.5° 24.5 72.1° 59.3 7.5 42.5 4.8 5.9 104.2 83.5 38.6 65.6 73.0 82.5
