Trek Domane Domane S 5 Disc

Serie: Domane - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

CrankShimano 105, 50/34 (compact)
DerailleursFront: Shimano 105, braze-on - Rear: Shimano 105
ShiftersShimano RS505, 11-speed
CassetteShimano 105, 11-32, 11-speed

Frameset

ForkDomane carbon disc, E2 tapered steerer, 15mm thru-axle

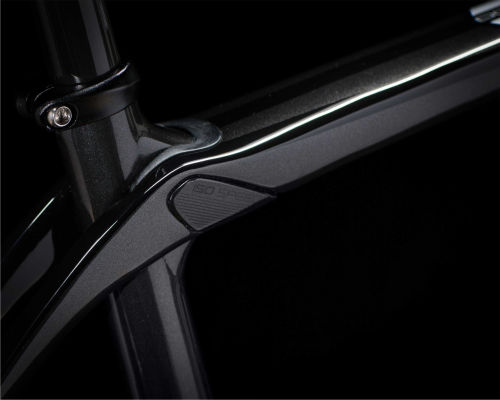

Frame400 Series OCLV Carbon, IsoSpeed, E2 tapered head tube, BB90, disc balanced post mount, Power Transfer Construction, 142x12 Closed Convert dropout, hidden mudguard mounts, 3S chain keeper, DuoTrap compatible
HeadsetIntegrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts

Wheels

HubFront: Bontrager alloy sealed bearing, 15mm alloy axle, Center Lock - Rear: Bontrager alloy Center Lock, 142x12
RimsBontrager Tubeless Ready disc
TyresBontrager R1 Hard-Case Lite, 700x25c
WheelsBontrager alloy sealed bearing Center Lock hubs; 15mm alloy axle front, 142x12 rear, Bontrager Tubeless Ready disc rims

Brakes

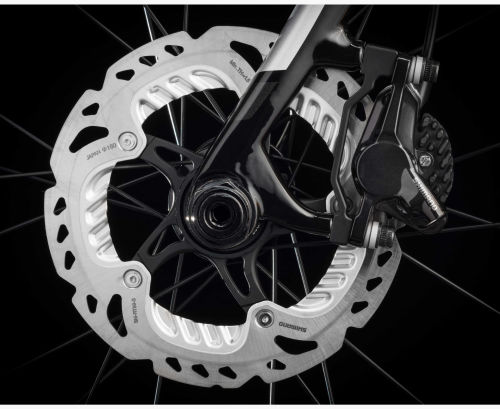

BrakesShimano RS785 hydraulic disc, post mount

Components

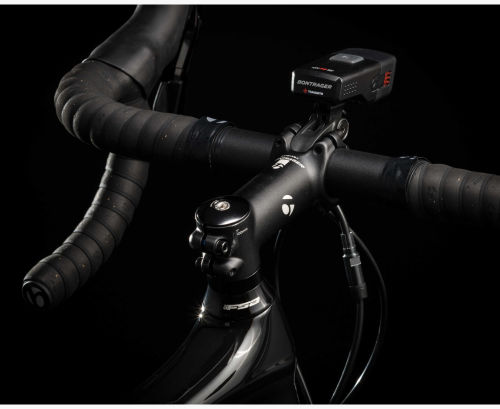

HandlebarBontrager Race VR-C, 31.8mm
SaddleBontrager Affinity Comp, chromoly rails
SeatpostBontrager carbon, 2-bolt head, 27.2mm, 8mm offset
StemBontrager Elite, 31.8mm, 7 degree, w/computer and light mounts

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle C Head tube length D Head angle E Effective top tube G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Saddle rail height minimum Saddle rail height maximum
44 cm 44 cm 700c 40.8 74.6° 10.0 70.4° 49.9 7.2 41.0 5.0 6.8 97.1 68.2 36.2 49.9 53.5 63.0
47 cm 47 cm 700c 44.4 74.6° 11.5 71.2° 51.3 7.2 41.0 4.5 6.7 97.4 69.8 36.9 52.2 55.5 65.0
50 cm 50 cm 700c 45.0 74.6° 13.0 71.1° 51.9 8.0 42.0 5.3 6.0 99.6 71.6 36.8 54.6 58.5 68.0
52 cm 52 cm 700c 47.5 74.2° 14.5 71.3° 53.0 8.0 42.0 5.3 5.9 100.3 73.5 37.1 56.1 61.5 71.0
54 cm 54 cm 700c 50.0 73.7° 16.0 71.3° 54.2 8.0 42.0 5.3 5.9 101.0 75.4 37.4 57.5 64.0 73.5
56 cm 56 cm 700c 52.5 73.3° 17.5 71.9° 55.4 7.8 42.0 4.8 6.1 100.8 77.6 37.7 59.1 67.0 76.5
58 cm 58 cm 700c 54.8 73.0° 19.5 72.0° 56.7 7.8 42.5 4.8 6.0 102.2 79.6 38.0 61.1 69.0 78.5
60 cm 60 cm 700c 56.7 72.8° 22.0 72.1° 57.9 7.5 42.5 4.8 5.9 103.2 81.7 38.3 63.2 71.0 80.5
62 cm 62 cm 700c 58.6 72.5° 24.5 72.1° 59.3 7.5 42.5 4.8 5.9 104.2 83.5 38.6 65.6 73.0 82.5
