Trek Domane Domane SL 6

Serie: Domane - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

CrankShimano Ultegra, 50/34 (compact)
DerailleursFront: Shimano Ultegra, braze-on - Rear: Shimano Ultegra
ShiftersShimano Ultegra, 11-speed
CassetteShimano Ultegra, 11-32, 11-speed

Frameset

ForkDomane full carbon, E2 tapered steerer, direct mount brakes

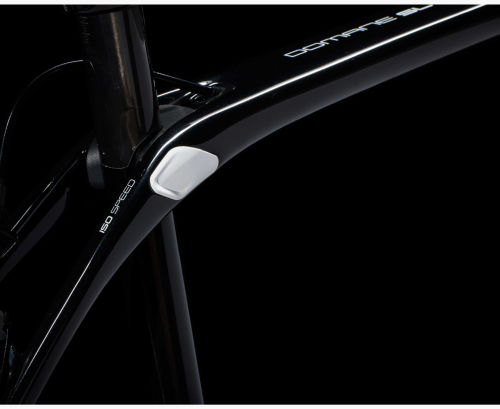

Frame500 Series OCLV Carbon, Front and Rear IsoSpeed, E2 tapered head tube, BB90, Power Transfer Construction, hidden mudguard mounts, internal cable routing, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
HeadsetIntegrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Bontrager Pro, 31.8mm, 7 degree, w/computer and light mounts

Wheels

TyresBontrager R2 Hard-Case Lite, aramid bead, 700x28c
WheelsBontrager Race Tubeless Ready

Brakes

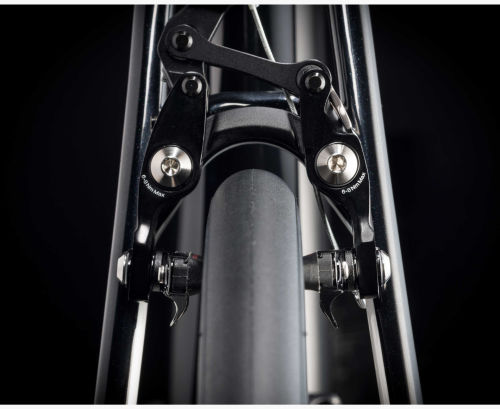

BrakesBontrager Speed Stop, direct mount

Components

HandlebarBontrager Race Lite IsoZone, VR-CF, 31.8mm
SaddleBontrager Affinity Comp, chromoly rails
SeatpostBontrager Ride Tuned carbon seat mast cap, 20mm offset
StemBontrager Pro, 31.8mm, 7 degree, w/computer and light mounts

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle C Head tube length D Head angle E Effective top tube G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Saddle rail height minimum Saddle rail height maximum
50 cm 50 cm 700c 45.0 74.6° 13.0 71.1° 51.9 8.0 42.0 5.3 6.0 99.6 71.6 36.8 54.6 58.5 68.0
52 cm 52 cm 700c 47.5 74.2° 14.5 71.3° 53.0 8.0 42.0 5.3 5.9 100.3 73.5 37.1 56.1 61.5 71.0
54 cm 54 cm 700c 50.0 73.7° 16.0 71.3° 54.2 8.0 42.0 5.3 5.9 101.0 75.4 37.4 57.5 64.0 73.5
56 cm 56 cm 700c 52.5 73.3° 17.5 71.9° 55.4 7.8 42.0 4.8 6.1 100.8 77.6 37.7 59.1 67.0 76.5
58 cm 58 cm 700c 54.8 73.0° 19.5 72.0° 56.7 7.8 42.5 4.8 6.0 102.2 79.6 38.0 61.1 69.0 78.5
60 cm 60 cm 700c 56.7 72.8° 22.0 72.1° 57.9 7.5 42.5 4.8 5.9 103.2 81.7 38.3 63.2 71.0 80.5
62 cm 62 cm 700c 58.6 72.5° 24.5 72.1° 59.3 7.5 42.5 4.8 5.9 104.2 83.5 38.6 65.6 73.0 82.5
