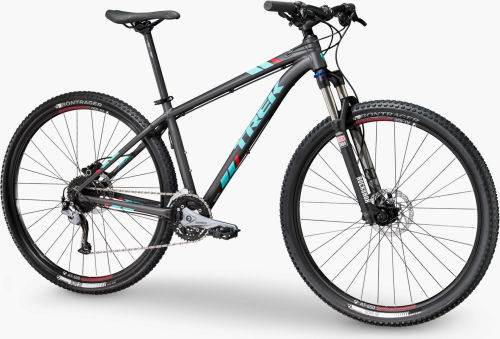

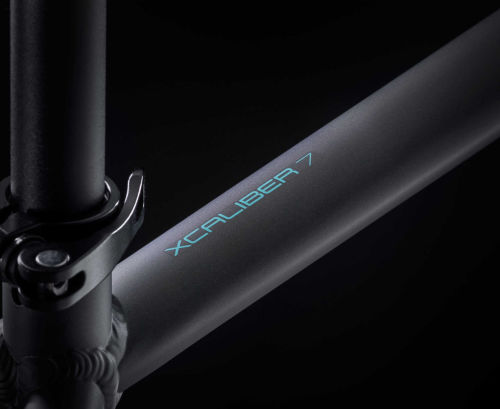

Trek X-Caliber X-Caliber 7
Serie: X-Caliber - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | KMC X9 |
|---|---|
| Crank | Shimano M3000, 40/30/22 |

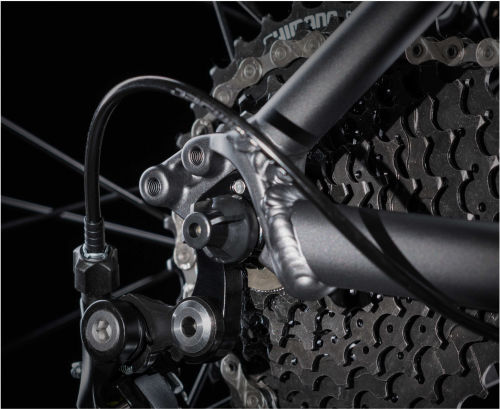

| Derailleurs | Front: Shimano Acera - Rear: Shimano Acera M3000, Shadow |
| Shifters | Shimano Acera M3000, 9-speed |
| Cassette | Shimano HG20, 11-34, 9-speed |
Frameset

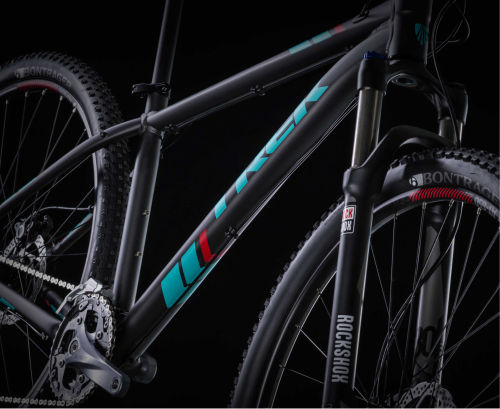

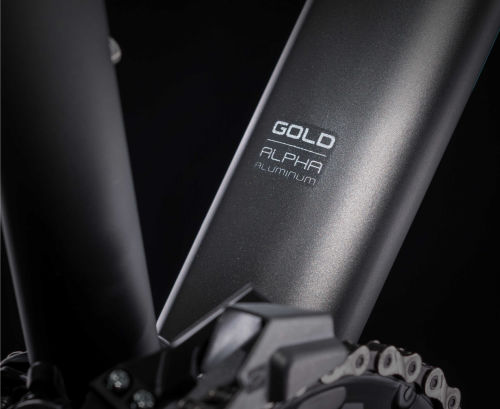

| Frame | Alpha Gold Aluminium w/semi-integrated head tube, mechanically formed & butted tubing, race geometry, internal front derailleur routing, G2 Geometry on 29ers |
|---|---|
| Headset | 1-1/8" threadless, semi-integrated, semi-cartridge bearings |

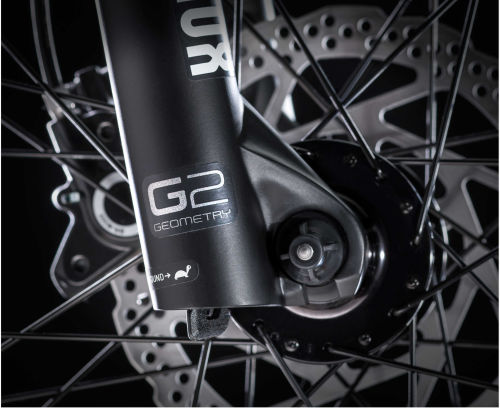

| Suspensions | Front: RockShox 30 Silver, coil spring, preload, hydraulic lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5": 80mm travel) |
| Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
Wheels
| Hub | Front: Formula DC20 alloy - Rear: Formula DC22 alloy |
|---|---|
| Rims | Bontrager AT-650 32-hole double-walled |
| Tyres | Bontrager XR2, 29x2.20" front, 29x2.00" rear (Bontrager XR2, 27.5x2.20") |
| Wheels | Formula alloy hubs, Bontrager AT-650 rims |
Brakes
| Brakes | Shimano M355 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 1.5 |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
| Stem | Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 in | 13.5 in | 34.3 | 73.0 ° | 10.0 | 69.0 ° | 52.5 | 30.6 | 4.8 | 43.8 | 4.4 | 8.9 | 103.3 | 66.0 | 35.2 | 56.5 |
