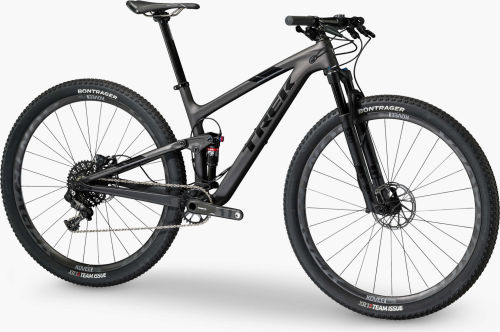

Trek Top Fuel Top Fuel 9.8 SL

Serie: Top Fuel - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainSRAM PC 1130
CrankSRAM X1 Carbon, 32T Direct Mount X-Sync
DerailleursRear: SRAM X01, Roller Bearing Clutch
ShiftersSRAM X1, 11-speed
CassetteSRAM XG-1175, 10-42, 11-speed

Frameset

FrameOCLV Mountain Carbon main frame and seatstay, alloy chainstay, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
HeadsetIntegrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
SuspensionsFront: Fox Performance 32 Float, Step Cast, Grip 2-position remote damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel - Rear: Fox Performance Float, RE:aktiv XC 2-position remote damper, tuned by Trek Suspension Lab, 6.5x1.5"
Bontrager Pro, 31.8mm, 7 degree, Blendr compatible

Wheels

TyresBontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120 tpi, aramid bead, 29x2.20" (15.5: 27.5x2.20")
WheelsBontrager Kovee Pro, OCLV Carbon, Tubeless Ready, Boost110 front, Boost148 rear (15.5: 142x12 rear)

Brakes

BrakesSRAM Level TLM hydraulic disc

Components

HandlebarBontrager Race X Lite, OCLV Carbon, 31.8mm, 5mm rise
SaddleBontrager Montrose Elite, hollow titanium rails
SeatpostBontrager Pro, OCLV Carbon, 2-bolt head, 31.6mm, 5mm offset
StemBontrager Pro, 31.8mm, 7 degree, Blendr compatible

geometry

Frame size number Actual frame size Geometry position Wheel size A Seat tube B Seat tube angle Effective seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack
15.5 in 15.5 in Low 27.5" 39.4 69.5° 73.5° 10.0 69.9° 55.8 33.0 2.5 42.7 4.7 8.0 106.4 73.2 39.2 56.1
17.5 in 16.5 in Low 29" 41.9 68.5° 74.0° 9.0 70.0° 59.3 33.0 3.9 43.5 5.1 8.0 111.1 72.4 42.7 57.7
18.5 in 17.5 in Low 29" 44.5 68.5° 74.0° 9.0 70.0° 60.9 33.0 3.9 43.5 5.1 8.0 112.7 71.9 44.3 57.7
19.5 in 18.5 in Low 29" 47.0 68.5° 74.0° 10.0 70.0° 62.5 33.0 3.9 43.5 5.1 8.0 114.4 71.9 45.7 58.7
21.5 in 20.5 in Low 29" 49.5 68.5° 74.0° 12.0 70.0° 64.6 33.0 3.9 43.5 5.1 8.0 116.6 71.9 47.2 60.6
