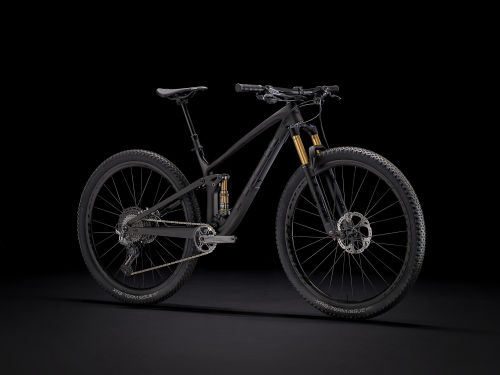

Trek Top Fuel 9.9 XTR
Serie: Top Fuel - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XTR M9100, 12-speed |
|---|---|

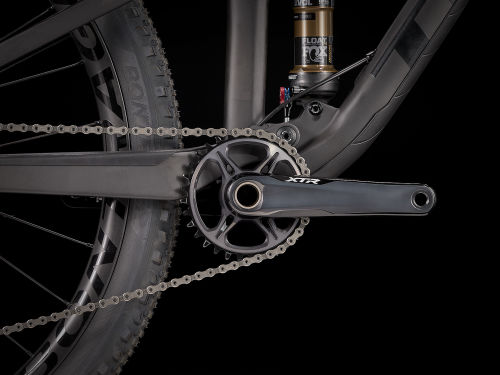

| Crank | Size: SShimano XTR M9120, 32T alloy ring, Boost, 170 mm length - Size: M, M/L, L, XLShimano XTR M9120, 32T alloy ring, Boost, 175 mm length |

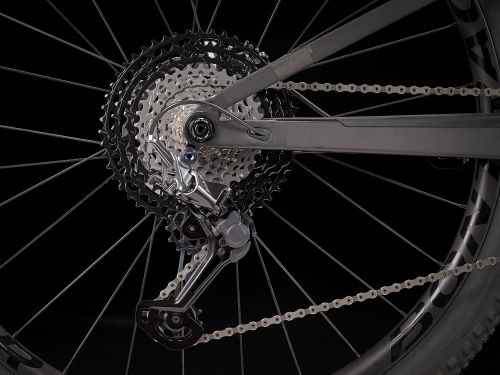

| Derailleurs | Rear: Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog |
| Shifters | Shimano XTR M9100, 12-speed |
| Cassette | Shimano XTR M9100, 10-51, 12-speed |
Frameset

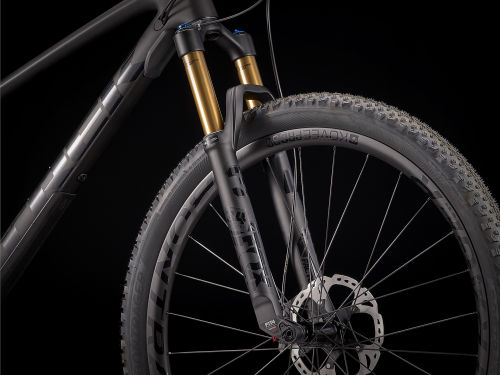

| Fork | Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 120 mm travel |
|---|---|
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

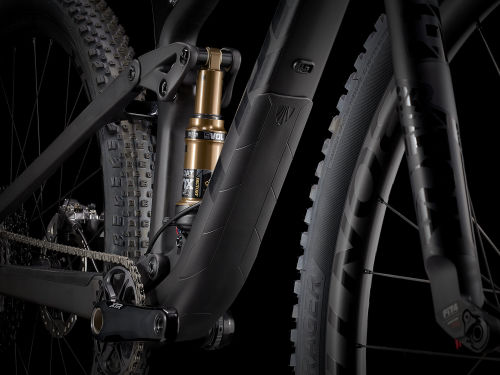

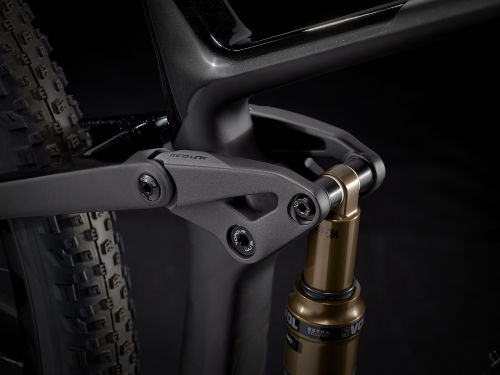

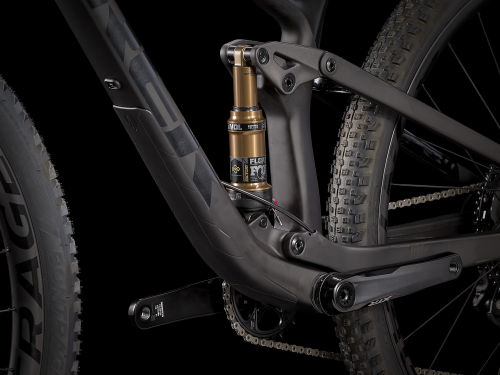

| Shoc | Fox Factory Float, 2-position DPS damper, Kashima Coat, 190x45 mm |
| Size: S, MBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length - Size: M/L, L, XLBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 70 mm length |
Wheels

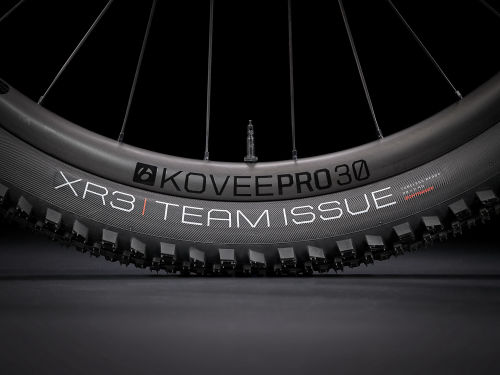

| Tyres | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
|---|
Brakes

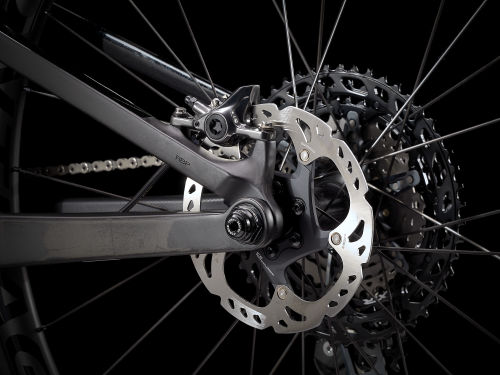

| Brakes | Shimano XTR M9100 hydraulic disc |
|---|
Components

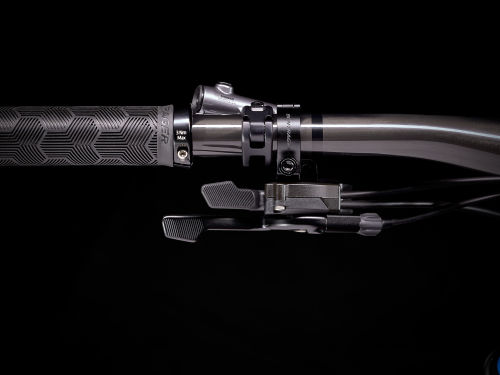

| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Montrose Pro, 7x10 mm carbon rails, 138 mm width |
| Seatpost | Size: SBontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: M, M/LBontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L, XLBontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |

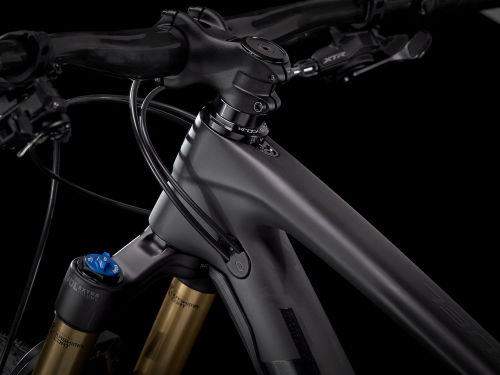

| Stem | Size: S, MBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length - Size: M/L, L, XLBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 70 mm length |
