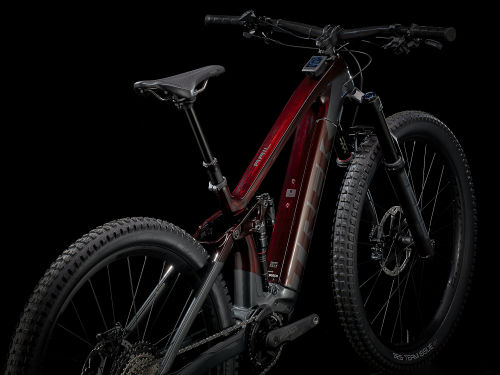

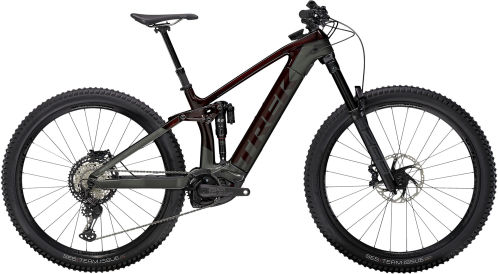

Trek Rail 9.8 XT
Serie: Rail - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XT M8100, 12-speed |
|---|---|

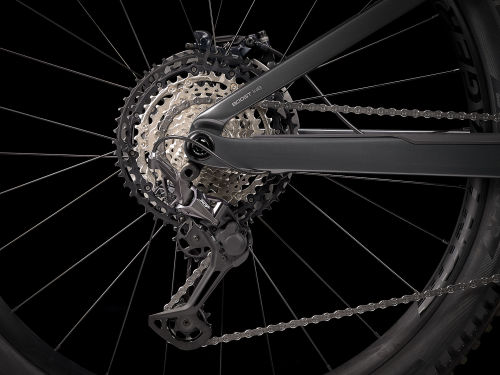

| Derailleurs | Rear: Shimano XT M8100, long cage, 51T max cog |
| Shifters | Shimano XT M8100, 12-speed |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
Frameset
| Fork | RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

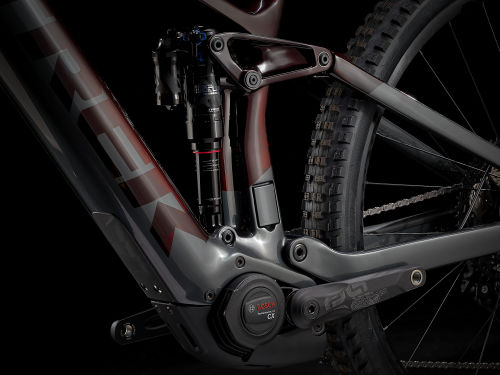

| Shoc | NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm |
| Size: S, M, L, XLBontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length - Size: S, M, L, XLBontrager Rhythm Comp, Knock Block, 31.8 mm, 0-degree, 60 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
|---|---|

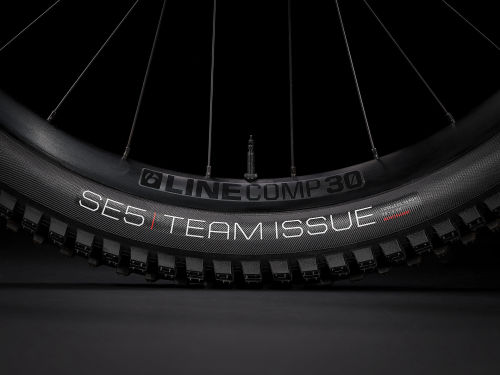

| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" |
Brakes

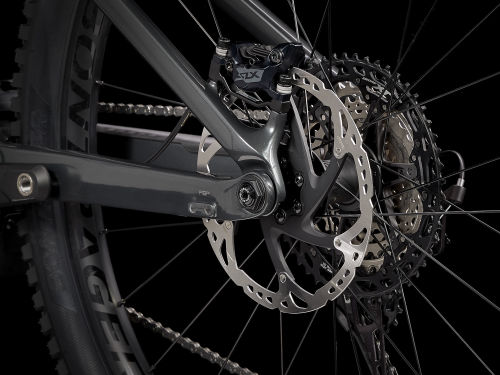

| Brakes | Shimano SLX M7120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Size: S, M, L, XLBontrager XR Trail Elite, alloy lock-on - Size: S, M, L, XLBontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: SBontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: MBontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L, XLBontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |
| Stem | Size: S, M, L, XLBontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length - Size: S, M, L, XLBontrager Rhythm Comp, Knock Block, 31.8 mm, 0-degree, 60 mm length |
| Pedals | VP-536 nylon platform |
E-System

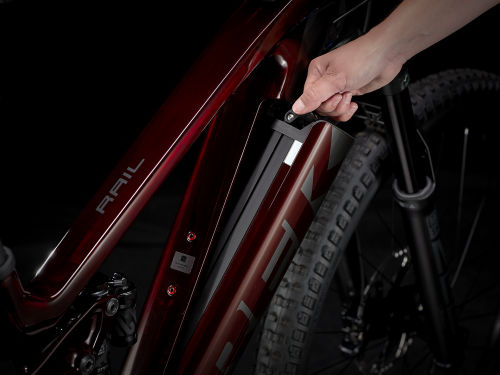

| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch standard 4A (220-240 V) charger |

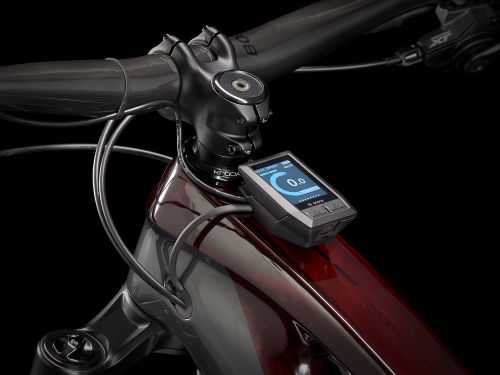

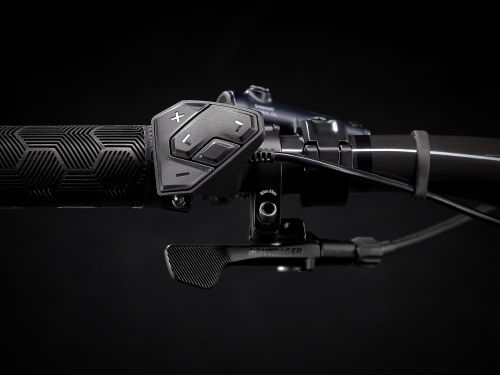

| Controller | Bosch Kiox with Anti-theft solution |

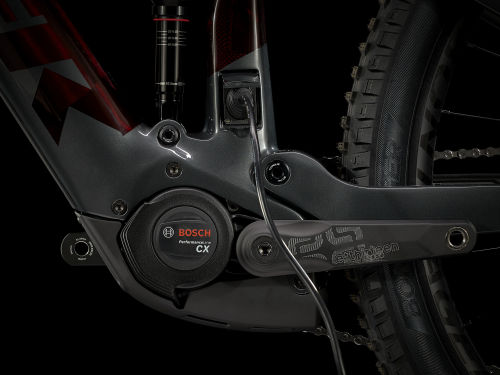

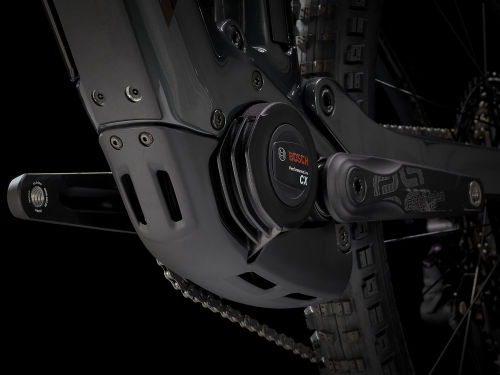

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
