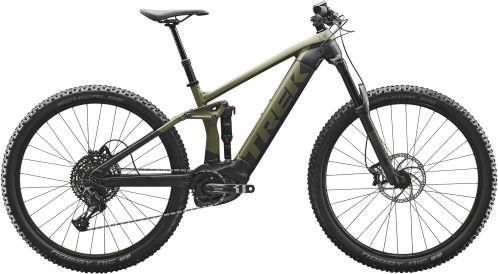

Trek Rail 5 625 Wh

Serie: Rail - Year: 2021
Trek

Where to buy it

Specifications

Drivetrain

ChainSRAM SX Eagle, 12-speed
CrankSRAM X1 1000, 36T, 165 mm length
DerailleursRear: SRAM SX Eagle
ShiftersSRAM SX Eagle single-click, 12-speed
CassetteSRAM PG-1210 Eagle, 11-50, 12-speed

Frameset

ForkRockShox 35 Gold RL, DebonAir spring, Motion Control damper, e-MTB optimised, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160mm travel

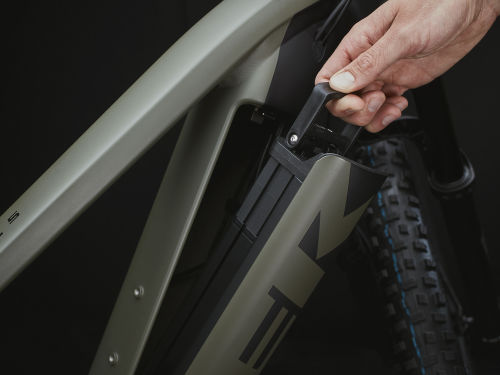

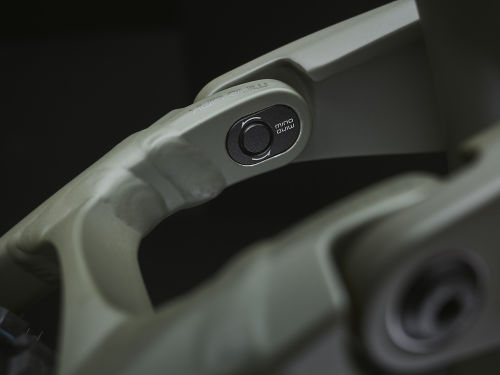

FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel

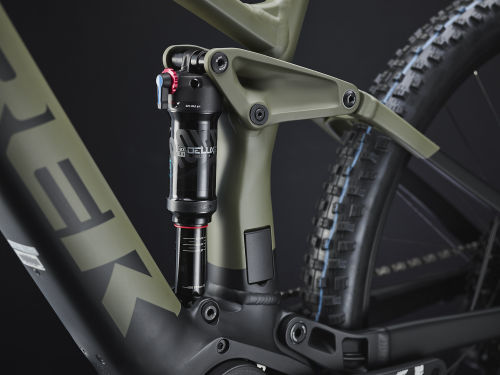

ShocRockShox Deluxe Select+, 230x57.5 mm
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length

Wheels

HubFront: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
RimsAlex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve
TyresBontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"

Brakes

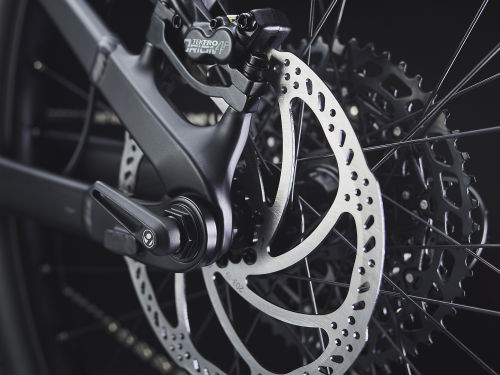

BrakesTektro HD-M745 4-piston hydraulic disc

Components

HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
GripsBontrager XR Trail Comp, nylon lock-on
SaddleBontrager Arvada, steel rails, 138 mm width
SeatpostSize: STranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: M, L, XLTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length

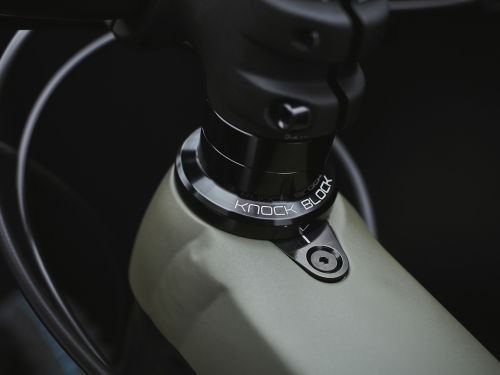

StemBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
PedalsVP-536 nylon platform

E-System

BatteryBosch PowerTube 625

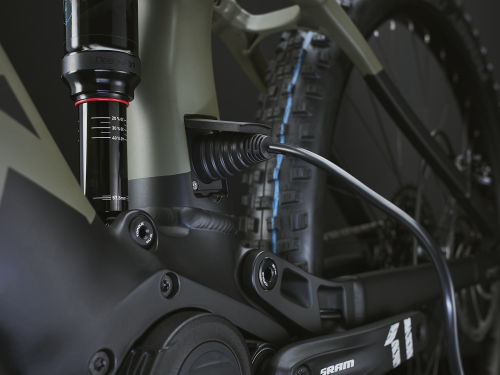

ChargerBosch compact 2A (100-240 V) charger

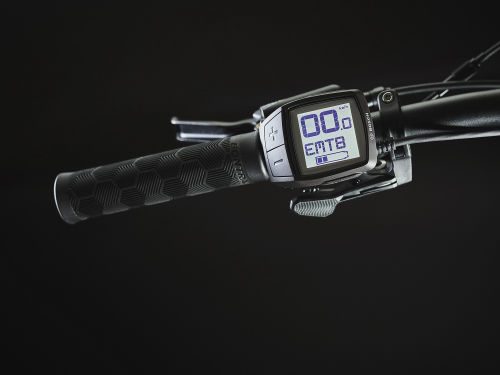

ControllerBosch Purion

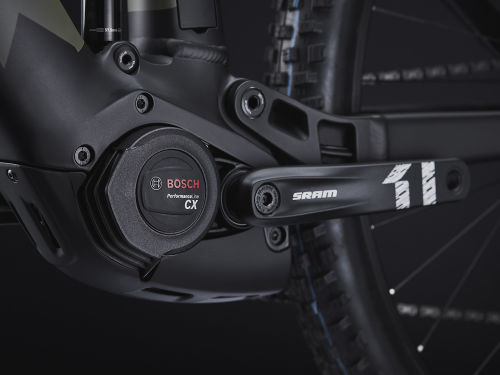

MotorBosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
