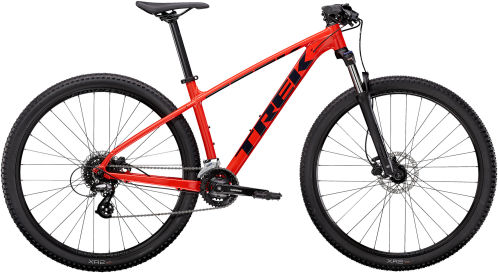

Trek Marlin 6
Serie: Marlin - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | KMC Z8.3, 8 speed |
|---|---|

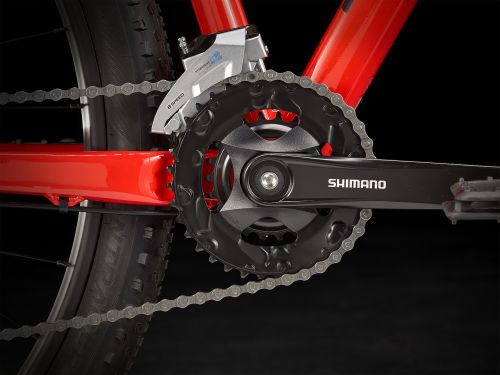

| Crank | Size: XS , S , M Shimano M315, 36/22, 170 mm length - Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length |

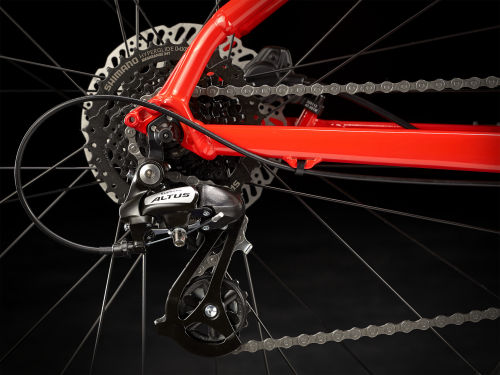

| Derailleurs | Front: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull - Rear: Shimano Altus M310 |
| Shifters | Shimano Altus M315, 8-speed |
| Cassette | Shimano HG31, 11-34, 8-speed |
Frameset

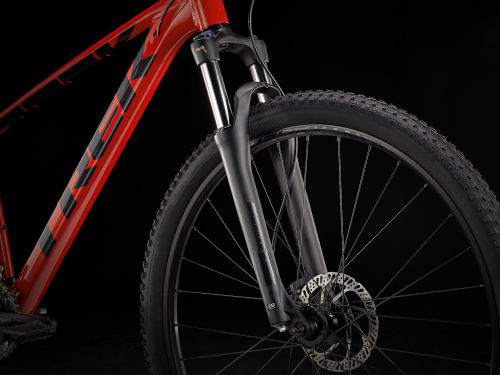

| Fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel - Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel - Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel |
|---|---|

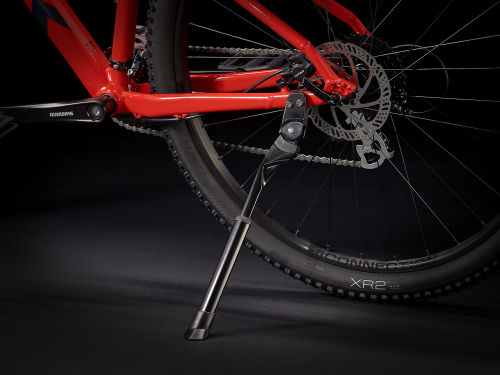

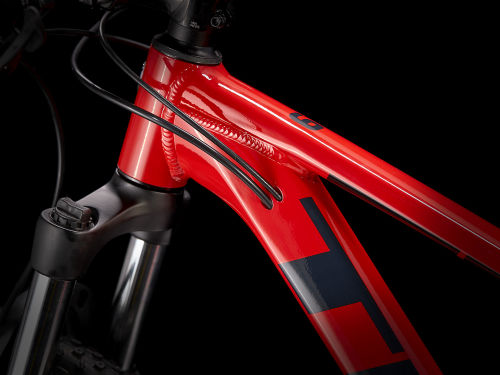

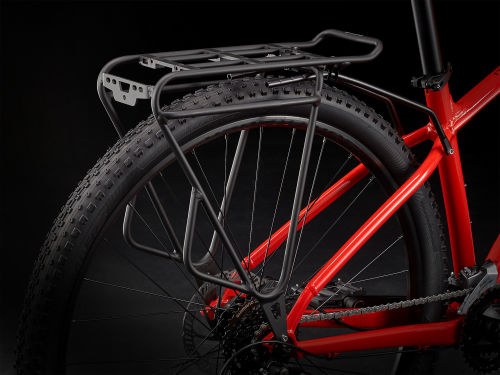

| Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
| Headset | Semi-integrated, 1-1/8" |
| Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length - Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length |
Wheels
| Hub | Front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR - Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
|---|---|
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyres | Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" - Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
Brakes

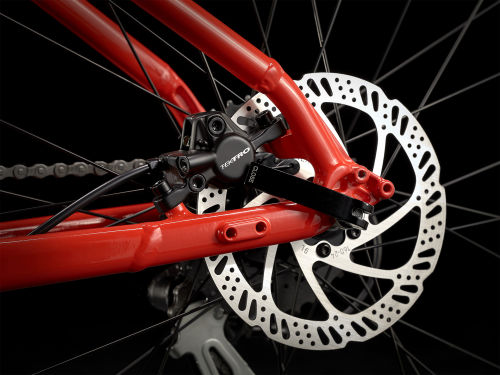

| Brakes | Size: XS , S Tektro HD-M276 hydraulic disc, short-reach lever - Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|---|
Components

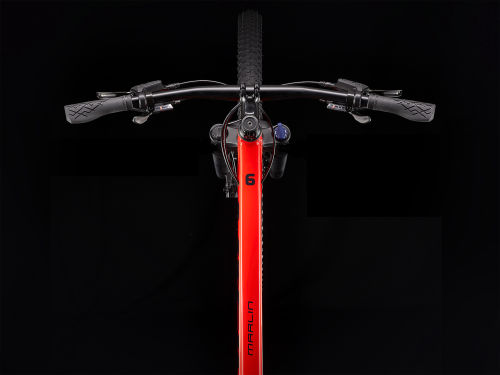

| Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|---|---|
| Grips | Bontrager XR Endurance Comp |

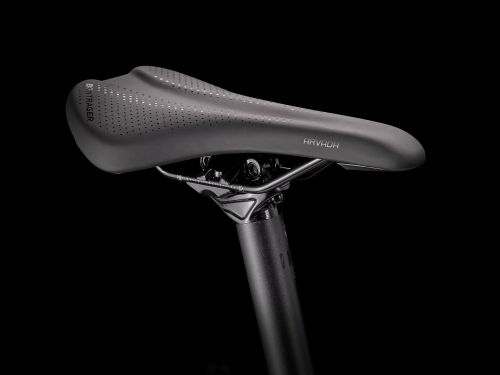

| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Stem | Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length - Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length |
| Pedals | VP-536 nylon platform |
