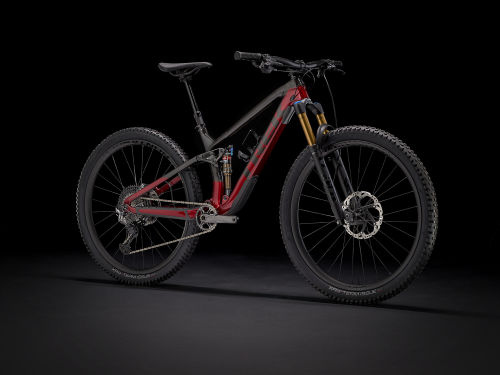

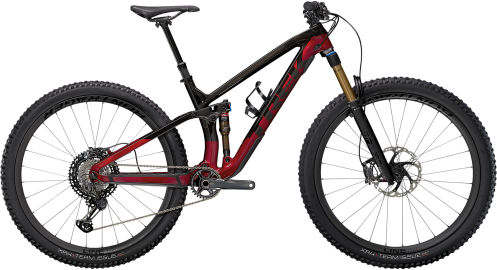

Trek Fuel EX 9.9 XTR
Serie: Fuel EX - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XTR M9100, 12-speed |
|---|---|

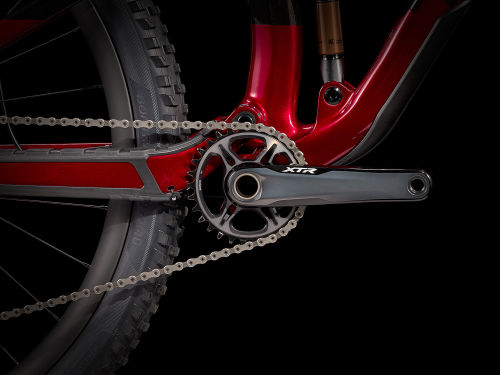

| Crank | Size: XS , S Shimano XTR M9120, 30T alloy ring, Boost (52 mm chain line), 170 mm length - Size: M , ML , L , XL Shimano XTR M9120, 30T alloy ring, Boost (52 mm chain line), 175 mm length |
| Derailleurs | Rear: Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog |
| Shifters | Shimano XTR M9100, 12-speed |
| Cassette | Shimano XTR M9100, 10-51, 12-speed |
Frameset
| Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
|---|---|

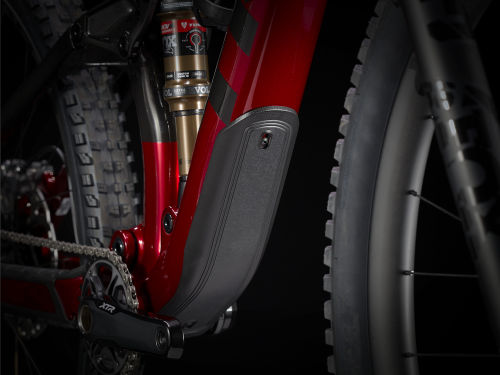

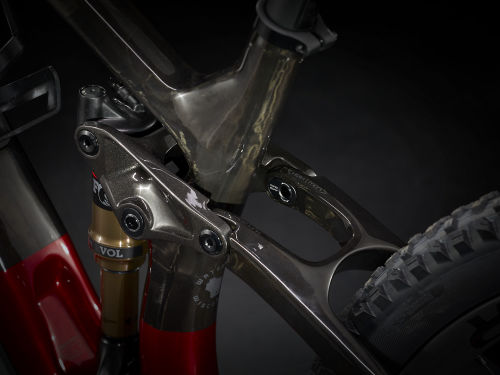

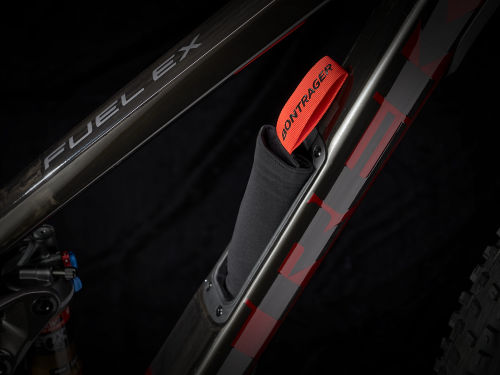

| Frame | OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

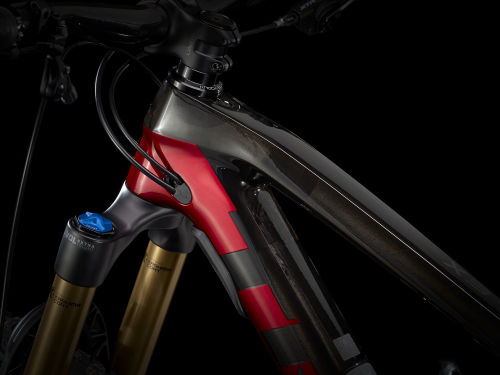

| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
| Shoc | Size: XS , S Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5mm - Size: S , M , ML , L , XL Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55 mm |
| Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
Wheels

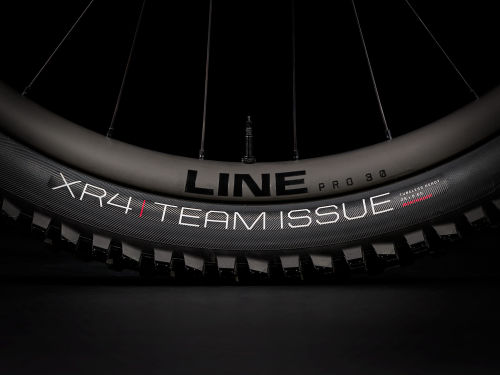

| Tyres | Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
|---|
Brakes

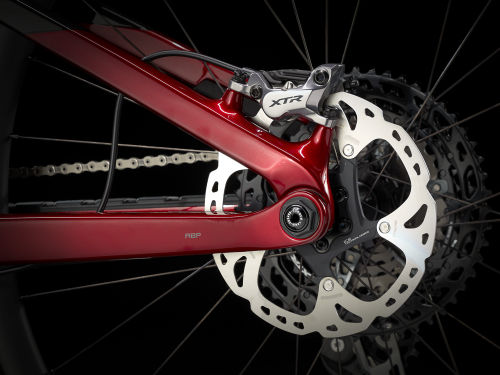

| Brakes | Shimano XTR M9120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada Pro, carbon rails, 138 mm width |
| Seatpost | Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: M , ML Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L , XL Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |

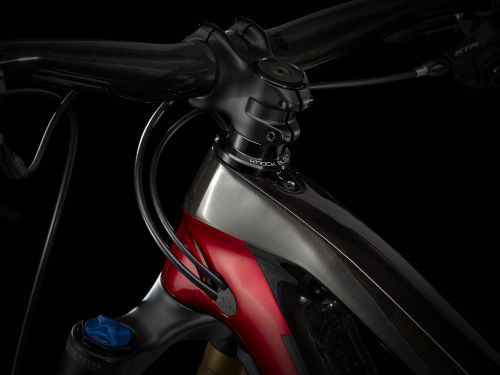

| Stem | Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
