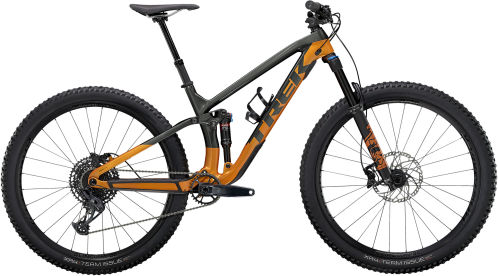

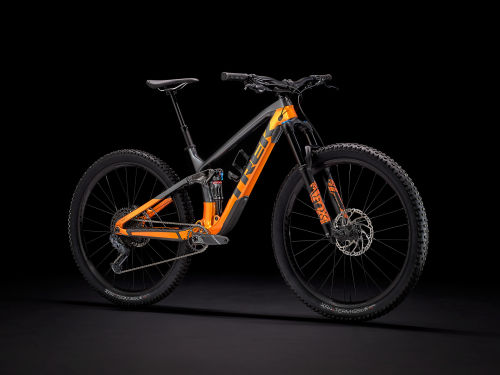

Trek Fuel EX 9.7
Serie: Fuel EX - Year: 2021
Where to buy it
Specifications

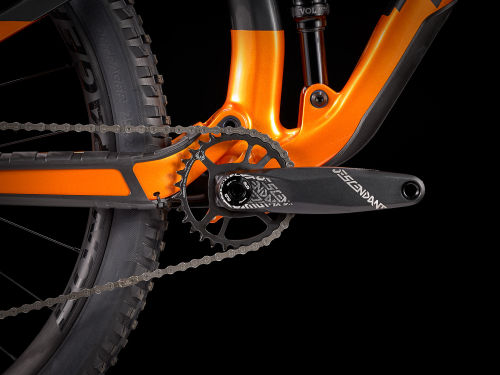

Drivetrain
| Derailleurs | Rear: SRAM GX Eagle |
|---|---|
| Shifters | SRAM NX Eagle, 12-speed |
| Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Frameset
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
|---|---|

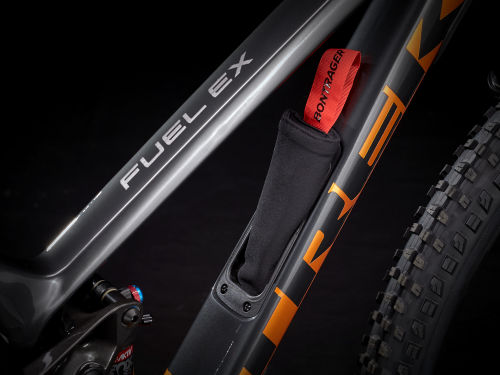

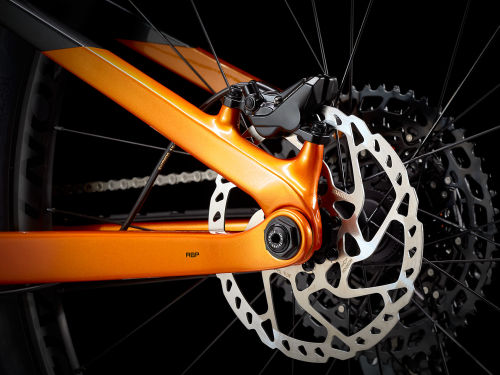

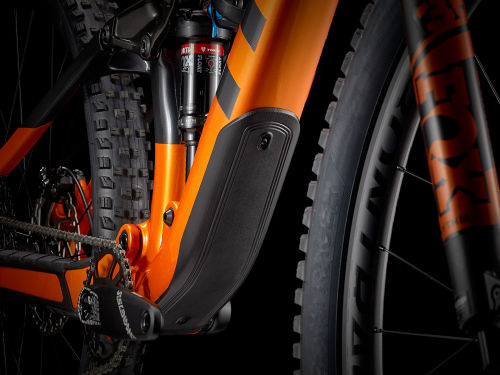

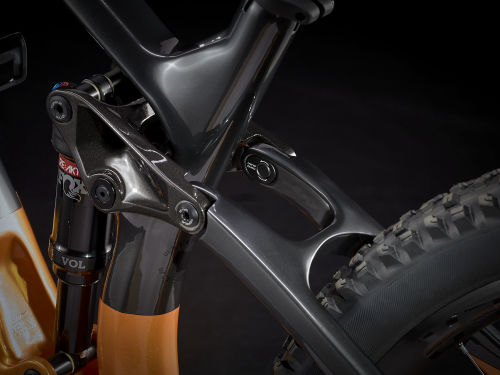

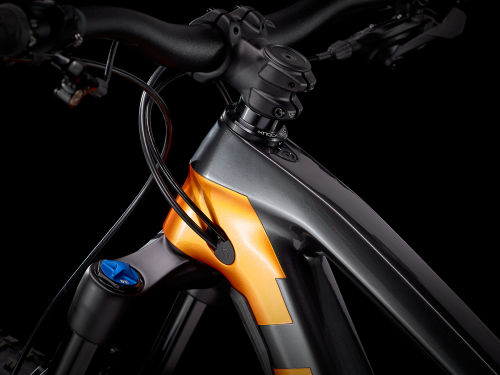

| Frame | OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

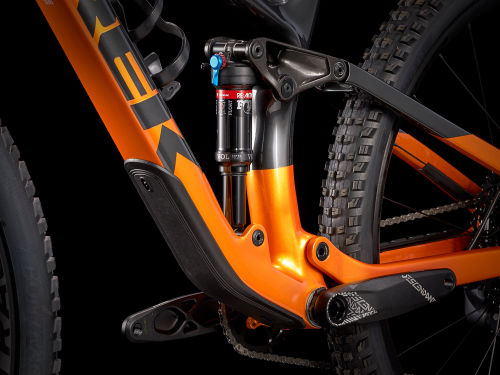

| Shoc | Size: XS , S Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x52.5 mm - Size: S , M , ML , L , XL Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x55 mm |
| Size: XS , S Bontrager Line, 35 mm, Knock Block, 0-degree, 40 mm length - Size: M , ML , L , XL Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Spokes | DT Swiss Champion, J-Bend, Black |

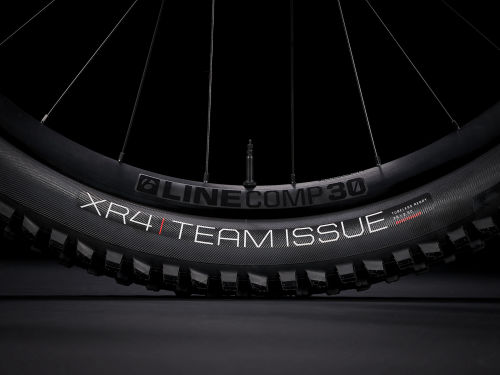

| Tyres | Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
Components
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: XS , S Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length - Size: M , ML , L , XL Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length |

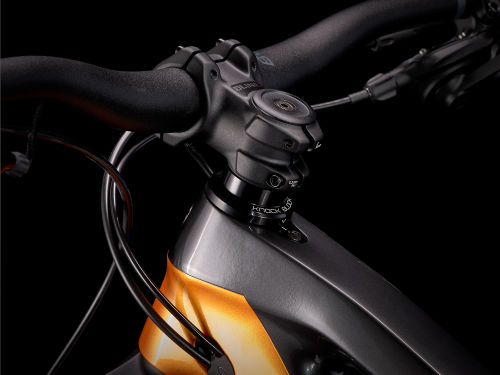

| Stem | Size: XS , S Bontrager Line, 35 mm, Knock Block, 0-degree, 40 mm length - Size: M , ML , L , XL Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length |
