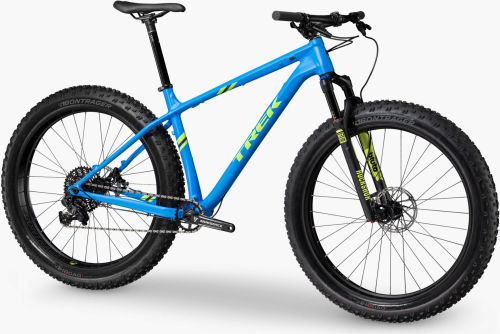

Trek Farley Farley 9
Serie: Farley - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PC 1130 |
|---|---|
| Crank | Race Face Turbine Cinch, 28T |
| Derailleurs | Rear: SRAM X1, Type 2 |
| Shifters | SRAM X1, 11-speed |
| Cassette | SRAM XG-1150, 10-42, 11-speed |
Frameset

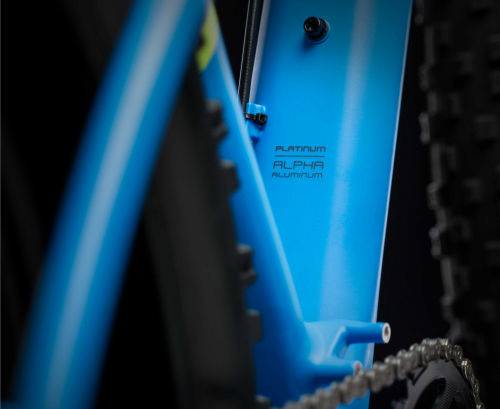

| Frame | Alpha Platinum Aluminium, E2 tapered head tube, internal derailleur & dropper post routing, PF121, 197mm Stranglehold adjustable thru-axle dropouts |
|---|---|
| Headset | FSA IS-2, E2, sealed alloy cartridge |

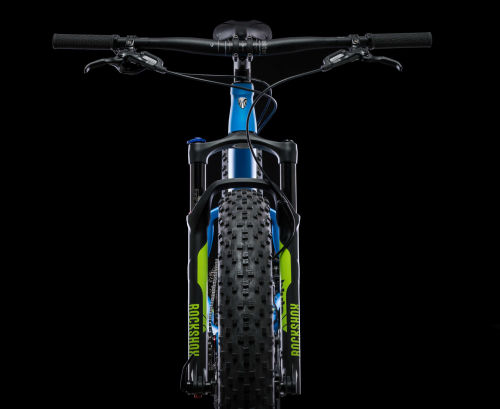

| Suspensions | Front: RockShox Bluto RL, Solo Air, Motion Control damper, lockout, 150x15mm Maxle Lite, 100mm travel |
| Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
Wheels
| Tyres | Bontrager Hodag, Tubeless Ready, 120tpi, aramid bead, 27.5x3.8" |
|---|---|
| Wheels | Bontrager Jackalope Tubeless Ready, 80mm rim, 150x15 front, 197x12 rear |
Brakes

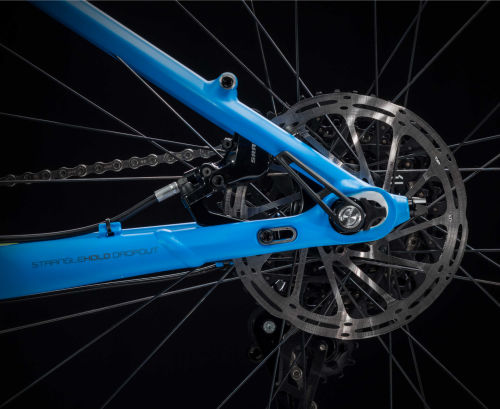

| Brakes | Avid DB 5 hydraulic disc |
|---|
Components
| Handlebar | Bontrager Rhythm Elite, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset |
| Stem | Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17.5 in | 16.5 in | 41.9 | 70.5 ° | 10.0 | 68.0 ° | 59.3 | 32.2 | 5.7 | 44.0 | 5.1 | 10 | 111.1 | 75 | 40 | 60.5 |
| 19.5 in | 18.5 in | 47.0 | 70.5 ° | 12.0 | 68.0 ° | 63.0 | 32.2 | 5.7 | 44.0 | 5.1 | 10 | 115 | 77.8 | 43 | 62.5 |
