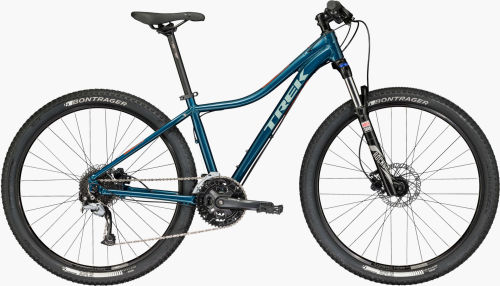

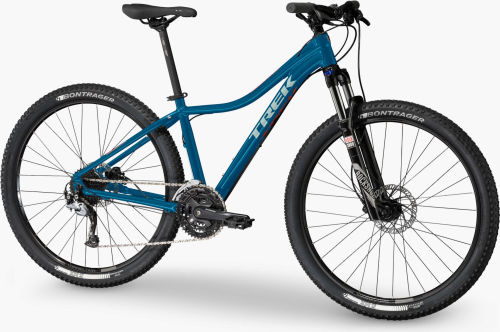

Trek Cali Women's Cali S Women's

Serie: Cali Women's - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainKMC X9
CrankShimano M351, 44/32/22
DerailleursFront: Shimano Altus - Rear: Shimano Acera M3000, Shadow
ShiftersShimano Altus M370, 9-speed
CassetteShimano HG20, 11-34, 9-speed

Frameset

FrameWSD Alpha Gold Aluminium w/semi-integrated head tube, mechanically formed and butted tubing, race geometry, internal front derailleur routing, rack and mudguard mounts, G2 Geometry on 29ers
Headset1-1/8" threadless, semi-integrated, semi-cartridge bearings
SuspensionsFront: RockShox 30, WSD Rider Right coil spring, preload, TurnKey lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)
Bontrager alloy, 31.8mm, 7mm rise, Blendr compatible

Wheels

HubFront: Formula DC20 alloy - Rear: Formula DC22 alloy
RimsBontrager Connection 32-hole double-walled rims
TyresBontrager XR2, 29x2.20" front, 29x2.00" rear (13.5 & 15.5: 27.5x2.20")
WheelsFormula DC20 alloy front hub; Formula DC22 alloy rear hub; Bontrager Connection 32-hole double-walled rims

Brakes

BrakesTektro M285 hydraulic disc

Components

HandlebarBontrager alloy, 31.8mm, 15mm rise
SaddleBontrager Evoke 1.5 WSD
SeatpostBontrager SSR, 2-bolt head, 27.2mm, 12mm offset
StemBontrager alloy, 31.8mm, 7mm rise, Blendr compatible

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle Effective seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack
13.5 in 13.5 in 27.5" 34.3 73.0° 73.0° 10.0 69.0° 52.5 30.6 4.8 43.8 4.4 8.9 103.3 66.0 35.2 56.5
15.5 in 15.5 in 27.5" 39.4 73.0° 73.0° 10.0 69.3° 56.0 30.6 4.8 43.8 4.4 8.7 106.6 68.0 38.1 58.5
17 in 16 in 29" 40.6 73.0° 73.0° 10.0 69.0° 59.0 31.2 0.0 44.5 5.1 8.5 111.3 66.9 40.7 59.8
18.5 in 17.5 in 29" 44.5 73.0° 73.0° 10.0 69.0° 61.2 31.2 0.0 44.5 5.1 8.5 113.5 68.5 42.9 59.8
