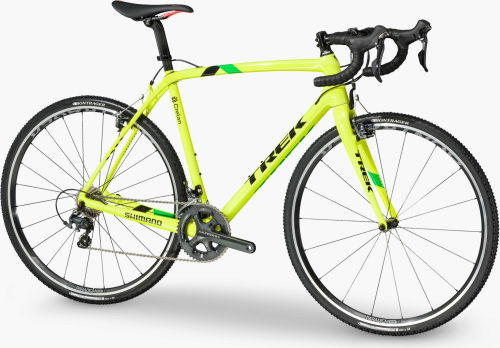

Trek Boone Boone Race Shop Limited
Serie: Boone - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Shimano Ultegra |
|---|---|
| Crank | Shimano Ultegra, 46/36 |
| Derailleurs | Front: Shimano Ultegra, braze-on - Rear: Shimano Ultegra |
| Shifters | Shimano Ultegra, 11-speed |
| Cassette | Shimano Ultegra, 11-28, 11-speed |
Frameset
| Fork | Trek IsoSpeed Cross carbon, carbon E2 steerer |
|---|---|
| Frame | 600 Series OCLV Carbon, E2 tapered head tube, BB90, internal control routing, Ride Tuned seatmast, IsoSpeed, 3S chain keeper |
| Headset | Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Bontrager Race X Lite, 31.8mm, 7-degree |
Wheels
| Tyres | Bontrager CX3 Team Issue, 120tpi, aramid bead, 700x32c |
|---|---|
| Wheels | Bontrager Paradigm Elite |
Brakes
| Brakes | Shimano CX70 cantilever |
|---|
Components
| Handlebar | Bontrager Race X Lite IsoZone, OCLV Carbon, VR-CF, 31.8mm |
|---|---|
| Saddle | Bontrager Serano RXL, carbon rails |
| Seatpost | Bontrager Ride Tuned Carbon seatmast cap, 20mm offset |
| Stem | Bontrager Race X Lite, 31.8mm, 7-degree |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 50 cm | 700c | 47.6 | 75.0° | 11.0 | 71.0° | 51.8 | 7.0 | 42.5 | 4.5 | 7.4 | 100.1 | 74.7 | 37.5 | 53.4 | 58.5 | 67.5 |
| 52 cm | 52 cm | 700c | 49.3 | 74.5° | 12.3 | 71.5° | 53.1 | 7.0 | 42.5 | 4.5 | 7.1 | 100.5 | 76.1 | 37.9 | 54.7 | 61.5 | 70.5 |
| 54 cm | 54 cm | 700c | 51.3 | 74.0° | 13.8 | 72.0° | 54.4 | 6.8 | 42.5 | 4.5 | 6.7 | 101.0 | 77.9 | 38.3 | 56.2 | 64.0 | 73.0 |
| 56 cm | 56 cm | 700c | 53.3 | 73.6° | 15.7 | 72.0° | 55.8 | 6.8 | 42.5 | 4.5 | 6.7 | 102.0 | 79.6 | 38.7 | 58.0 | 67.0 | 76.0 |
| 58 cm | 58 cm | 700c | 55.3 | 73.3° | 17.6 | 72.3° | 57.0 | 6.5 | 42.5 | 4.5 | 6.6 | 102.8 | 81.6 | 39.1 | 59.7 | 69.0 | 78.0 |
| 61 cm | 61 cm | 700c | 58.3 | 73.0° | 20.5 | 72.3° | 58.8 | 6.5 | 42.5 | 4.5 | 6.6 | 104.3 | 84.3 | 39.7 | 62.4 | 72.0 | 81.0 |
