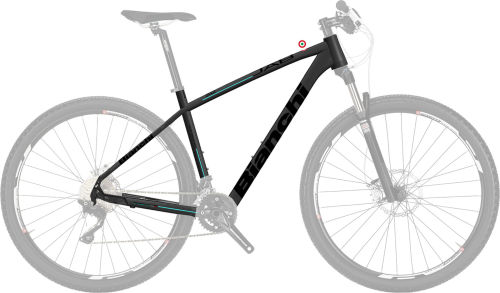

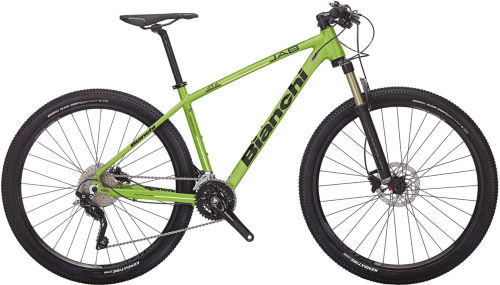

Bianchi Jab 27.2 Jab 27.2 - XT/SLX 2x10sp
Serie: Jab 27.2 - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Kmc X10 EPT finish |
|---|---|
| Crank | Shimano FC-M627, 38/24T, crank length: 170mm-15", 175mm-17/21" |
| Derailleurs | Rear: Shimano XT RD-M781 SGS Shadow Design 10sp - Front: Shimano Deore FD-M618-D |
| Shifters | Shimano SLX SL- M670 2x10sp |
| Sprocket | Shimano HG50-10sp, 11-13-15-17-19-21-24-28-32-36T |
Frameset
| Fork | Fox Float 32 CTD Evolution, 100mm |
|---|---|
| Frame | Jab 27,5" alu 6061 triple butted, 1.5" tapered HT, BSA 73mm, seatpost 27,2mm, HDM Front Derailleur, bottom pull, PM 160mm bottom mounting dropout 12x142mm, sizes 15,17,19,21" |
| Headset | Fsa Orbit 1.5E ZS |
| Tec Obvius 3D forged alloy 6061, +/-7°, 1.1/8", 31.8mm, ext: 80mm-15/17", 90mm-19/21" |
Wheels
| Tyres | Kenda Honey BadgerXC Pro - 27,5x2.05 |
|---|---|
| Wheels | Wtb XC21 TCS Tubeless Ready 27,5" |
Brakes
| Brakes | Brakes: Shimano BR-M396, resin pad |
|---|
Components
| Handlebar | Tec Obvius flat top, DB Alloy 6061-T6, width 700mm, diam. 31,8mm, 9° backsweep |
|---|---|
| Saddle | Selle San Marco Era Dynamic |
| Seatpost | Tec Obvius, Alloy 6061-T6, 27.2mm, 20mm seatback, length: 350mm-15/17", 400mm-19/21" |
| Stem | Tec Obvius 3D forged alloy 6061, +/-7°, 1.1/8", 31.8mm, ext: 80mm-15/17", 90mm-19/21" |
