Vitus E-Escarpe VRS

Serie: E-Escarpe - Year: 2020
Vitus

Where to buy it

Specifications

Drivetrain

ChainShimano SLX 12 speed - N/A
DerailleursFront: 0 - N/A - Rear: Shimano XT 12 speed - RD-M8100, SGS 12-SPEED, TOP NORMAL, SHADOW PLUS
ShiftersShimano XT 12 speed - M8100, 12-SPEED RAPIDFIRE PLUS
CassetteShimano SLX 12 speed 10-51T - CS-M7100-12, HYPERGLIDE+, 10-12-14-16-18-21-24-28-33-39-45-51T

Frameset

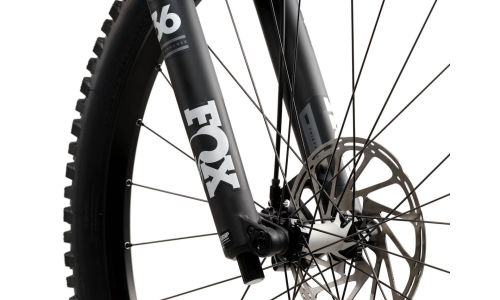

ForkFox Float 36 Performance eBike+ 29" 140mm - Grip Damper, Kabolt 110, 44mm Offset
FrameeEscarpe 29"/27.5" 140mm travel full suspension eMTB frame - Boost, 6061 Alloy, Shimano STEPS compatible
HeadsetACROS - ZS 44mm/56mm
ShocFox Float DPS Performance - 3 Position Dial, Trunnion, Evol LV air spring, 205mm x 57.5mm, 0.8 Spacer, custom tune
Nukeproof Neutron - 45mm, 31.8mm bar diameter, 0deg rise

Wheels

HubFront: DT SWISS H1700 Spline - eMTB specific, Boost 110x15mm, 6-bolt Disc - Rear: DT SWISS H1700 Spline - eMTB specific. Boost 148x12mm, 6-bolt Disc, Shimano 12spd MICROSPLINE steel freehub
RimsRear: DT SWISS H1700 Spline 35 - eMTB specific, 27.5", 35mm inner rim width - Front: DT SWISS H1700 Spline 30 - eMTB specific, 29", 30mm inner rim width
SpokesDT SWISS - N/A
TyresFront: MAXXIS ASSEGAI - 29"x2.5"WT, 3C MaxxTerra/EXO+/TR - Rear: MAXXIS MINNION DHR2 - 27.5"x2.8", 3C MaxxTerra/EXO+/TR

Brakes

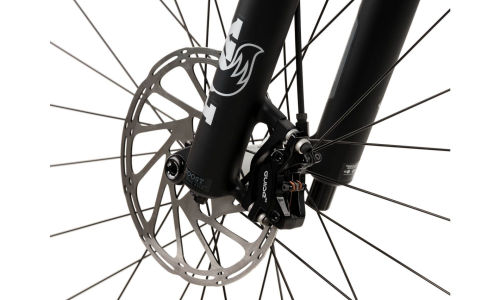

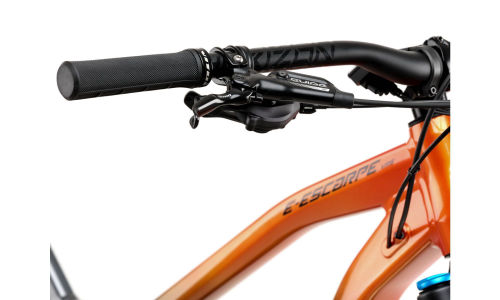

BrakesFront: SRAM Guide RE - 200mm Centerline Rotor - Rear: SRAM Guide RE - 200mm Centerline Rotor

Components

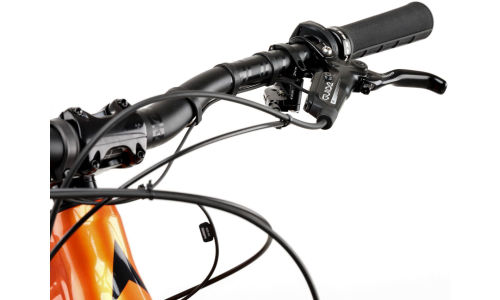

HandlebarNukeproof Horizon - "AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm"
GripsVITUS - Tapered, single alloy clamp, sticky rubber
SaddleWTB Volt 142 COMP - 0
SeatpostBrand X Ascend - 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
StemNukeproof Neutron - 45mm, 31.8mm bar diameter, 0deg rise

E-System

BatteryShimano E8010 500wh - N/A
