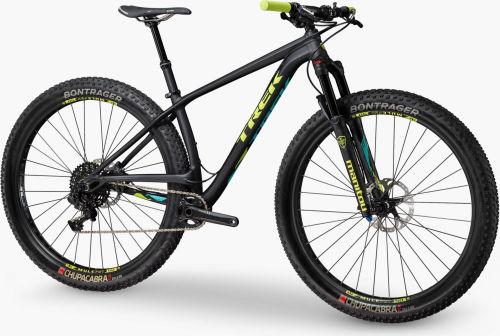

Trek Stache Stache 9 29+
Serie: Stache - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PC 1130 |
|---|---|
| Crank | SRAM X1 1400, 30T X-Sync |
| Derailleurs | Rear: SRAM X1, Type 2 |
| Shifters | SRAM X1, 11-speed |
| Cassette | SRAM XG-1175, 10-42, 11-speed |
Frameset
| Frame | Alpha Platinum Aluminium, E2 tapered head tube, internal derailleur & dropper post routing, PF 92, Mid-stay, Boost148, Stranglehold dropouts, G2 Geometry |
|---|---|
| Headset | FSA IS-2, E2, sealed alloy cartridge |
| Suspensions | Front: Manitou Magnum 34 Pro, air spring, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 110mm travel |
| Bontrager Rhythm Pro, 31.8mm, 7-degree |
Wheels
| Hub | Front: DT Swiss 350 CenterLock disc, Boost110 - Rear: DT Swiss 350 CenterLock disc, Boost148 |
|---|---|
| Rims | SUNringlé Mulefüt 50mm 32-hole w/cutouts |
| Tyres | Bontrager Chupacabra, Tubeless Ready, aramid bead, 29x3.0" |
| Wheels | DT Swiss 350 hubs, SUNringlé Mulefüt rims |
Brakes
| Brakes | Shimano Deore XT hydraulic disc |
|---|
Components
| Handlebar | Bontrager Rhythm Pro, OCLV Carbon, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke RXL, hollow Ti rails |
| Seatpost | KS eThirty Integra, remote lever, 2-bolt head, 31.6mm, zero offset, internal routing |
| Stem | Bontrager Rhythm Pro, 31.8mm, 7-degree |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17.5 in | 16.5 in | 41.9 | 68.9 ° | 9.0 | 68.4 ° | 59.1 | 32.9 | 6.1 | 42 | 5.1 | 10.0 | 109.9 | 80.9 | 40.7 | 62.1 |
