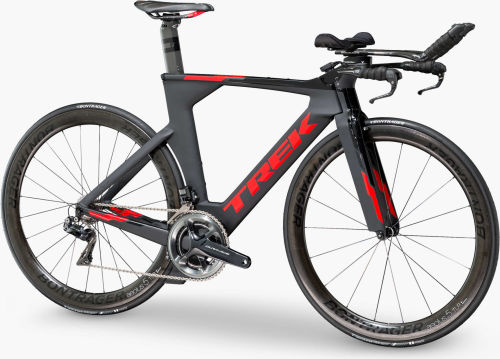

Trek Speed Concept Speed Concept 9.9
Serie: Speed Concept - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | Shimano Dura-Ace, 53/39 (double) |
|---|---|
| Derailleurs | Front: Shimano Dura-Ace Di2, braze-on - Rear: Shimano Dura-Ace Di2 |
| Shifters | Shimano Dura-Ace Di2, bar end control, 11-speed |
| Cassette | Shimano Dura-Ace, 11-25, 11-speed |
Frameset
| Fork | SC full foil carbon, carbon dropout, integrated brake and stem |
|---|---|
| Frame | 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90 w/Speed Fin, DuoTrap compatible, SC Speed Box compatible, includes SC Draft Box 2 |
| Headset | Integrated, sealed bearings |
| Bontrager Speed Concept, direct mount |
Wheels
| Tyres | Bontrager R4 Aero, 220tpi, aramid bead, 700x22c |
|---|---|
| Wheels | Bontrager Aeolus 5 D3 Tubeless Ready |
Brakes
| Brakes | Bontrager Speed Limit integrated brakes, Shimano Dura-Ace Di2, bar end control levers |
|---|
Components
| Handlebar | Bontrager Speed Concept full foil aero bar, carbon, direct mount |
|---|---|
| Saddle | Bontrager Hilo XXX, carbon rails |
| Seatpost | Bontrager Speed Concept Race X Lite, OCLV Carbon, +/-15mm offset |
| Stem | Bontrager Speed Concept, direct mount |
geometry
| Frame size letter | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L | 700c | 55.3 | 78.0° | 11.5 | 72.5° | 54.1 | 8.0 | 40.0 | 4.5 | 6.0 | 101.0 | 79.9 | 42.6 | 54.1 | 64.9 | 79.6 |
| M | M | 700c | 52.9 | 78.0° | 9.0 | 72.5° | 51.8 | 8.0 | 40.0 | 4.5 | 6.0 | 98.5 | 77.5 | 40.8 | 51.7 | 62.5 | 77.2 |
| S | S | 700c | 50.3 | 78.0° | 6.5 | 72.2° | 49.5 | 8.0 | 40.0 | 4.5 | 6.1 | 96.1 | 75.0 | 39.0 | 49.2 | 59.9 | 74.7 |
| XL | XL | 700c | 57.8 | 78.0° | 14.0 | 72.5° | 56.5 | 8.0 | 40.0 | 4.5 | 6.0 | 103.7 | 82.3 | 44.5 | 56.5 | 67.3 | 82.0 |
