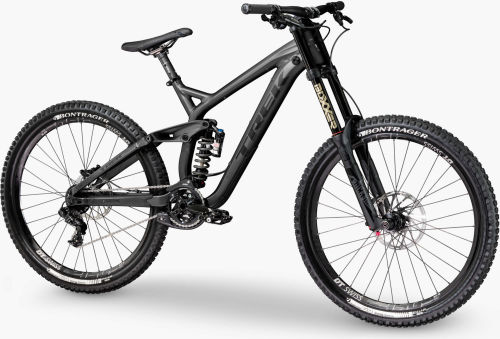

Trek Session Session 8 DH 27.5
Serie: Session - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PC-1110 |
|---|---|
| Crank | Truvativ Descendant, 36T |
| Derailleurs | Rear: SRAM GX DH, Roller Bearing Clutch |
| Shifters | SRAM GX DH, 7-speed |
| Cassette | SRAM PG-720, 11-25, 7-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Full Floater, EVO Link, E2 tapered head tube, Mino Link, integrated frame protection, internal control routing, MicroTruss, downtube guard, ISCG Mount, 210mm travel |
|---|---|
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: RockShox BoXXer RC, coil spring (S, M red; L, XL blue), low speed compression, internal preload, Motion Control IS, 20mm Maxle DH, 200mm travel - Rear: RockShox Kage RC, coil spring, rebound, adjustable hydraulic compression damping, (S 400 lb; M 450 lb; L 500 lb; XL 500 lb spring), tuned by Trek Suspension Lab, 8.75x2.75" |
| Bontrager Direct Mount, 31.8mm |
Wheels
| Tyres | Bontrager G4 Team Issue, 27.5x2.35" |
|---|---|
| Wheels | DT Swiss FR2150, 110x20 front, 157x12 rear |
Brakes
| Brakes | SRAM Guide R hydraulic disc |
|---|
Components
| Handlebar | Bontrager Rhythm Elite, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset |
| Stem | Bontrager Direct Mount, 31.8mm |
geometry
| Frame size letter | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L | Low | 27.5" | 45.6 | 57.0° | 11.5 | 63.6° | 61.8 | 35.6 | -0.1 | 44.5 | 5.2 | 11.8 | 122.7 | 78.4 | 42.6 | 60.7 |
| M | M | Low | 27.5" | 42.6 | 57.0° | 11.5 | 63.6° | 59.4 | 35.6 | -0.1 | 44.5 | 5.2 | 11.8 | 120.3 | 79 | 40.2 | 60.7 |
| S | S | Low | 27.5" | 42.6 | 57.0° | 11.5 | 63.6° | 57.4 | 35.6 | -0.1 | 44.5 | 5.2 | 11.8 | 118.3 | 80.4 | 38.2 | 60.7 |
| XL | XL | Low | 27.5" | 45.6 | 57.0° | 11.5 | 63.6° | 64.2 | 35.6 | -0.1 | 44.5 | 5.2 | 11.8 | 125.1 | 76.7 | 45.0 | 60.7 |
