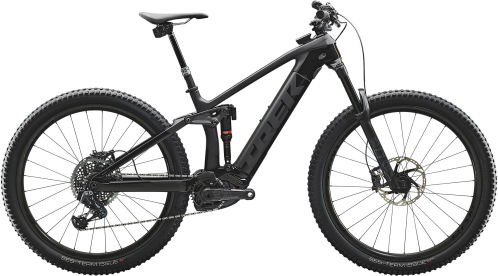

Trek Rail 9.9
Serie: Rail - Year: 2020
Where to buy it
Specifications
Drivetrain
| Chain | SRAM XX1 Eagle, 12-speed |
|---|---|
| Derailleurs | Rear: SRAM X01 Eagle AXS |
| Shifters | SRAM Eagle AXS, wireless, 12-speed |
| Cassette | SRAM XG-1295 Eagle, 10-50, 12-speed |
Frameset
| Fork | RockShox Lyrik Ultimate, DebonAir spring, Charger 2.1 RC2 damper, e-MTB-optimised, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|

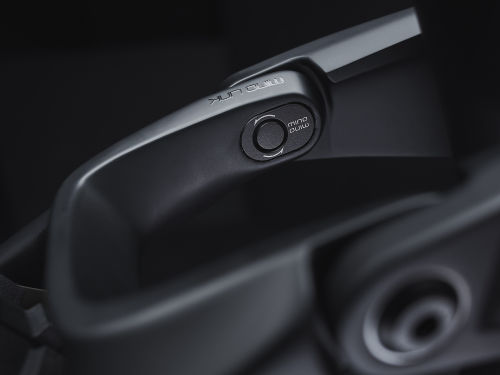

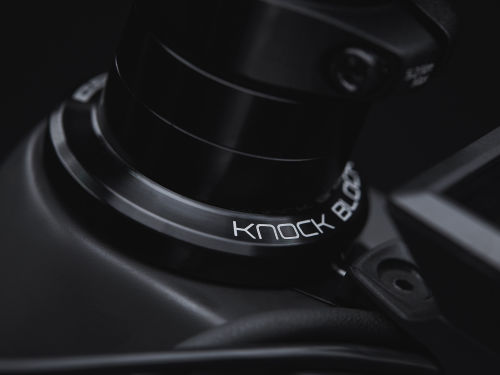

| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |

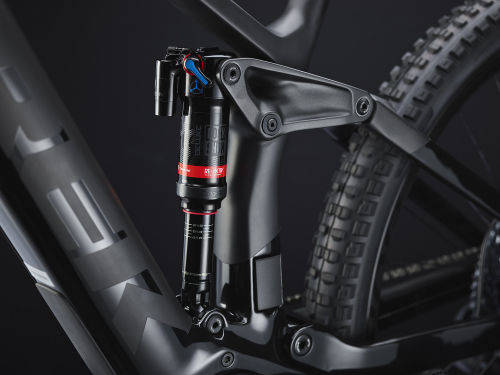

| Shoc | RockShox Deluxe RT3, DebonAir spring, RE:aktiv w/Thru Shaft damper, 230x57.5 mm |
| Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length |
Wheels

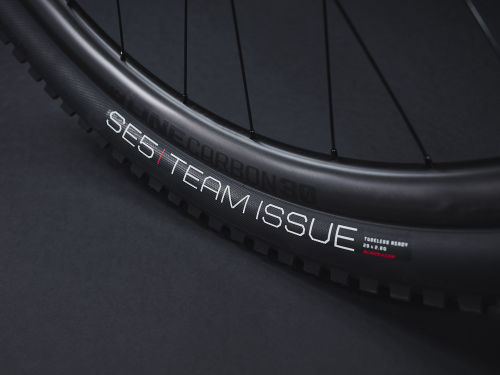

| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" |
|---|
Brakes

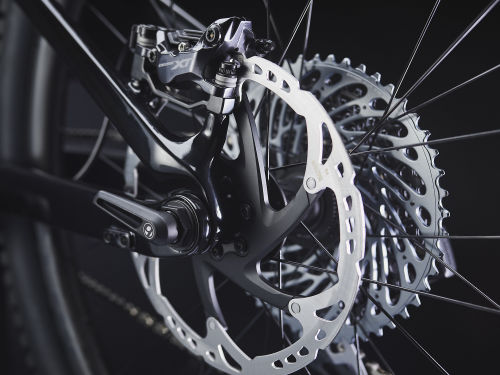

| Brakes | Shimano XT M8120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: SRockShox Reverb AXS, 100 mm travel, wireless, 31.6 mm, 340 mm length - Size: MRockShox Reverb AXS, 150mm travel, wireless, 31.6 mm, 440 mm length - Size: L, XLRockShox Reverb AXS, 170mm travel, wireless, 31.6 mm, 480 mm length |
| Stem | Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length |
| Pedals | VP-536 nylon platform |
E-System

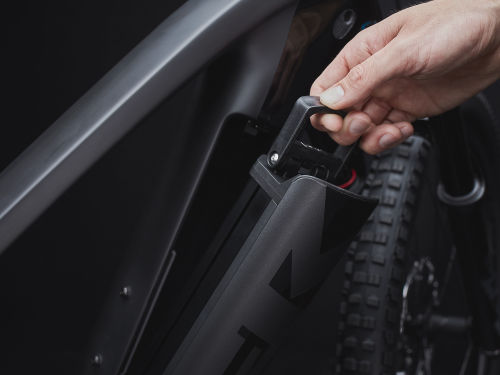

| Battery | Bosch PowerTube 625 |
|---|---|

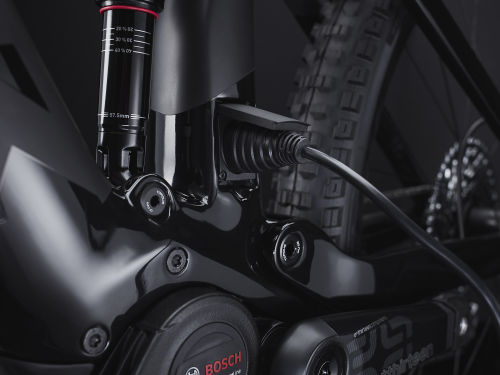

| Charger | Bosch standard 4A (220-240 V) charger |

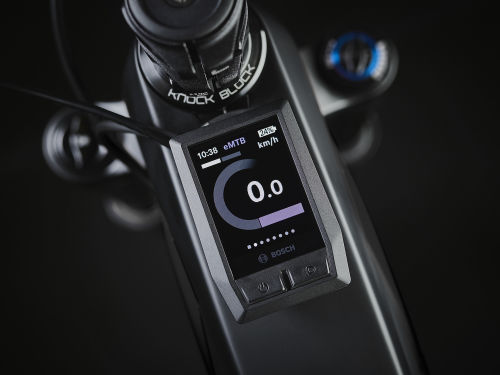

| Controller | Bosch Kiox with Anti-theft solution |

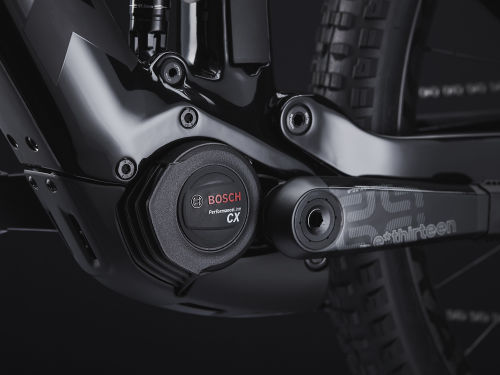

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
