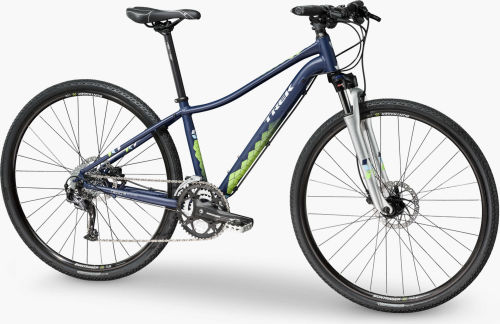

Trek Neko Women's Neko SL Women's
Serie: Neko Women's - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | KMC X9 |
|---|---|
| Crank | FSA Dyna Drive, 48/36/26 |
| Derailleurs | Front: Shimano Acera - Rear: Shimano Alivio |
| Shifters | Shimano Acera M390, 9-speed |
| Cassette | SRAM PG 950, 11-32, 9-speed |
Frameset
| Frame | WSD Alpha Gold Aluminium, DuoTrap S compatible, rack & mudguard mounts |
|---|---|
| Headset | 1-1/8" threadless, sealed cartridge bearings |

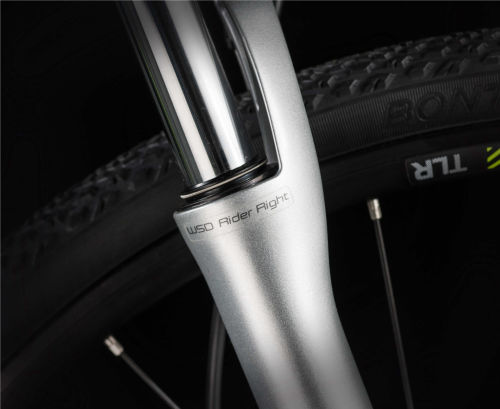

| Suspensions | Front: SR Suntour NEX, WSD Rider Right coil spring, preload, hydraulic lockout, 63mm travel |
| Bontrager Blendr Elite, w/computer & light mounts, 31.8mm, 7-degree |
Wheels
| Hub | Front: Formula DC20 alloy - Rear: Formula DC22 alloy |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Tyres | Bontrager LT2, 700x38c |
| Wheels | Formula alloy hubs, Bontrager Tubeless Ready rims |
Brakes
| Brakes | Tektro M290 hydraulic disc |
|---|
Components
| Handlebar | Bontrager Low Riser alloy, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 1.5 WSD |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
| Stem | Bontrager Blendr Elite, w/computer & light mounts, 31.8mm, 7-degree |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 in | 14 in | 33.8 | 74.5 ° | 11.4 | 70.0 ° | 55.0 | 29.4 | 45.5 | 3.8 | 8.9 | 107.0 | 69.4 |
| 16 in | 16 in | 38.2 | 74.0 ° | 11.4 | 70.5 ° | 56.0 | 29.4 | 45.5 | 3.8 | 8.5 | 107.0 | 71.6 |
