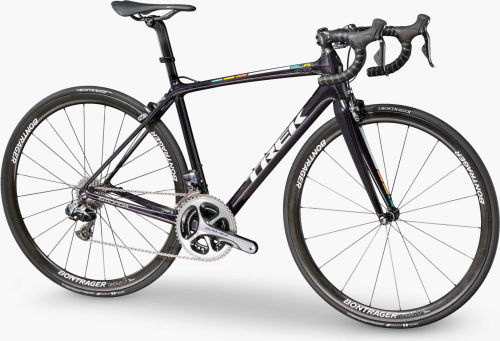

Trek Émonda Émonda SLR 9 Women's
Serie: Émonda - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | Shimano Dura-Ace |
|---|---|
| Crank | Shimano Dura-Ace, 50/34 (compact) |
| Derailleurs | Front: Shimano Dura-Ace Di2, braze-on - Rear: Shimano Dura-Ace Di2 |
| Shifters | Shimano Dura-Ace Di2, 11-speed |
| Cassette | Shimano Dura-Ace, 11-28, 11-speed |
Frameset
| Fork | Émonda full carbon, carbon E2 asymmetric steerer, carbon dropouts |
|---|---|
| Frame | Ultralight 700 Series OCLV Carbon, ride-tuned performance tube optimisation, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast |
| Headset | Cane Creek AER upper, cartridge bearing lower, sealed, 1-1/8” top, 1.5” bottom |
| Bontrager XXX, OCLV Carbon, 31.8mm, 7-degree, w/Blendr computer & light mounts |
Wheels
| Tyres | Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x23c |
|---|---|
| Wheels | Bontrager Aeolus 3 D3 Tubeless Ready |
Brakes
| Brakes | Bontrager Speed Stop, direct mount |
|---|
Components
| Handlebar | Bontrager Race X Lite IsoZone, OCLV Carbon, VR-SF shallow drop, WSD sized, 31.8mm |
|---|---|
| Saddle | Bontrager Ajna Pro WSD, carbon rails |
| Seatpost | Bontrager Ride Tuned carbon seatmast cap, 20mm offset |
| Stem | Bontrager XXX, OCLV Carbon, 31.8mm, 7-degree, w/Blendr computer & light mounts |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 50 cm | 47.6 | 74.6 ° | 13.0 | 72.1 ° | 52.1 | 7.2 | 41.0 | 4.5 | 6.1 | 97.4 | 70.7 | 37.4 | 53.5 | 58.5 | 68.0 |
