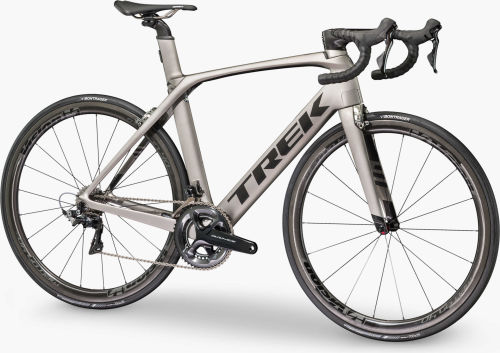

Trek Madone Madone 9.5

Serie: Madone - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

CrankShimano Dura-Ace, 50/34 (compact)
DerailleursFront: Shimano Dura-Ace - Rear: Shimano Dura-Ace
ShiftersShimano Dura-Ace 11-25, 11-speed
CassetteShimano Dura-Ace, 11-28, 11-speed

Frameset

ForkMadone KVF full carbon, carbon E2 tapered steerer, carbon dropouts, integrated brake and stem
Frame600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2 tapered head tube, BB90, invisible cable routing, control centre, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
HeadsetMadone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer and light mounts

Wheels

TyresBontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x25c
WheelsVision Metron 40 LTD

Brakes

BrakesMadone aero, integrated

Components

HandlebarMadone Integrated Bar/Stem, KVF Profile, invisible cable routing, OCLV Carbon, VR-CF
SaddleBontrager Montrose Elite, titanium rails
SeatpostMadone Micro-adjust carbon seatmast cap, 25mm offset
StemMadone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer and light mounts

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle C Head tube length D Head angle E Effective top tube G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Saddle rail height minimum Saddle rail height maximum
50 cm 50 cm 700c 47.6 74.6° 13.0 72.1° 52.1 7.2 41.0 4.5 6.1 97.4 70.7 37.4 54.0 58.5 67.5
52 cm 52 cm 700c 49.3 74.2° 14.0 72.8° 53.2 7.2 41.0 4.5 5.7 97.7 72.9 37.9 55.2 61.5 70.5
54 cm 54 cm 700c 50.6 73.7° 15.5 73.0° 54.3 7.0 41.0 4.5 5.6 98.1 74.2 38.1 56.0 64.0 73.0
56 cm 56 cm 700c 53.3 73.3° 17.0 73.5° 56.0 7.0 41.0 4.0 5.8 98.3 76.7 38.7 58.2 67.0 76.0
58 cm 58 cm 700c 55.3 73.0° 19.0 73.8° 57.3 6.8 41.1 4.0 5.6 99.2 78.6 39.1 60.1 69.0 78.0
60 cm 60 cm 700c 57.3 72.8° 21.0 73.9° 58.6 6.8 41.1 4.0 5.6 100.1 80.4 39.5 62.0 71.0 80.0
62 cm 62 cm 700c 59.3 72.5° 23.0 73.9° 59.8 6.8 41.2 4.0 5.5 101.0 82.2 39.8 63.9 73.0 82.0
