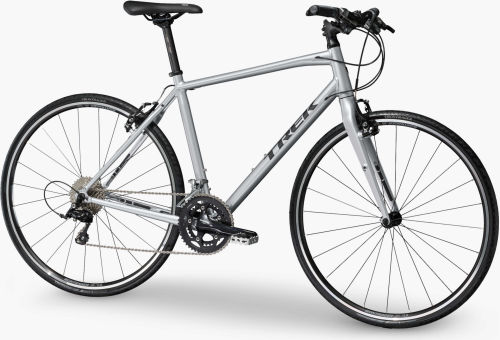

Trek FX FX S 4

Serie: FX - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainKMC X10
CrankShimano R460, 48/34
DerailleursFront: Shimano Tiagra - Rear: Shimano RD-R350
ShiftersShimano Tiagra, 10-speed
CassetteShimano Tiagra, 11-34, 10-speed

Frameset

ForkBontrager Nebula, carbon
FrameFX Alpha Gold Aluminium, DuoTrap S compatible, rack and mudguard mounts
HeadsetVP Slimstak, sealed semi-cartridge bearings
Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts

Wheels

HubFront: Formula TK31 alloy - Rear: Formula TK32 alloy
RimsBontrager Tubeless Ready
TyresBontrager AW1 Hard-Case Lite, 700x28c
WheelsFormula TK31 alloy front hub; Formula TK32 alloy rear hub; Bontrager Tubeless Ready rims

Brakes

BrakesTektro alloy linear-pull brakes, Tektro adjustable-reach alloy levers

Components

HandlebarBontrager Satellite Plus IsoZone, 31.8mm, 15mm rise
SaddleBontrager H1
SeatpostBontrager SSR, 2-bolt head, 27.2mm, 12mm offset
StemBontrager Elite, 31.8mm, 7 degree, w/computer and light mounts

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height H Chainstay length I Offset J Trail K Wheelbase L Standover
15 in 15 in 700c 38.1 74.5° 11.5 70.5° 54.4 28.5 44.5 5.0 7.0 105.7 69.3
17.5 in 17.5 in 700c 44.4 74.0° 13.0 70.5° 54.8 28.5 44.5 5.0 7.0 105.7 73.5
20 in 20 in 700c 50.8 73.5° 16.0 71.5° 56.8 28.5 44.5 4.5 7.0 105.8 78.3
22.5 in 22.5 in 700c 57.1 73.0° 19.0 72.5° 59.0 28.5 44.5 4.5 6.2 106.4 83.1
25 in 25 in 700c 63.5 72.0° 22.0 72.5° 60.3 28.5 44.5 4.5 6.2 106.5 87.7
