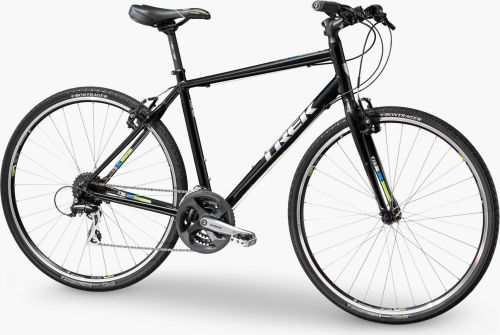

Trek FX 7.2 FX
Serie: FX - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | KMC Z7 |
|---|---|
| Crank | Shimano M131, 48/38/28 w/chainguard |
| Derailleurs | Front: Shimano Altus - Rear: Shimano Acera M360 |
| Shifters | Shimano Altus EF51, 8-speed |
| Cassette | Shimano HG31, 11-32, 8-speed |
Frameset
| Fork | High-tensile steel w/lowrider mounts, CLIX dropouts |
|---|---|
| Frame | FX Alpha Silver Aluminium, DuoTrap S compatible, rack & mudguard mounts |
| Headset | VP Slimstak, semi-cartridge bearings, sealed |
| Bontrager Comp, 25.4mm, 10-degree |
Wheels
| Hub | Front: Formula FM21 alloy - Rear: Formula FM32 alloy |
|---|---|
| Rims | Bontrager AT-750 double-walled alloy |
| Tyres | Bontrager H2 Hard-Case Lite w/puncture resistant belt, 700x35c |
| Wheels | Formula alloy hubs, Bontrager AT-750 alloy rims |
Brakes
| Brakes | Tektro alloy linear-pull, Shimano Altus levers |
|---|
Components
| Handlebar | Bontrager Low Riser alloy, 25.4mm, 15mm rise |
|---|---|
| Saddle | Bontrager SSR |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
| Stem | Bontrager Comp, 25.4mm, 10-degree |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 in | 15 in | 38.1 | 74.5 ° | 11.5 | 70.5 ° | 54.4 | 28.5 | 44.5 | 5.0 | 7.1 | 105.6 | 69.7 |
