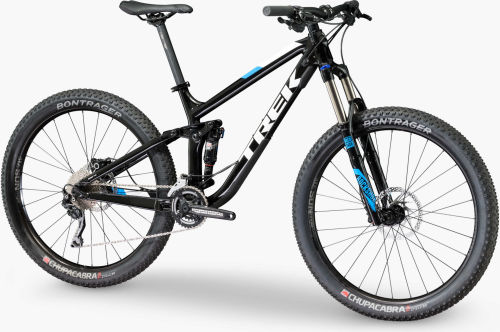

Trek Fuel EX Fuel EX 5 27.5 Plus
Serie: Fuel EX - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10 |
|---|---|
| Crank | Race Face Ride, 36/22 |
| Derailleurs | Front: Shimano Deore, high direct mount - Rear: Shimano Deore, Shadow |
| Shifters | Shimano Deore, 10-speed |
| Cassette | Shimano HG50, 11-36, 10-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, downtube guard, PF92, ISCG 05, G2 Geometry, 130mm travel |
|---|---|
| Headset | Knock Block integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: RockShox Sektor Silver RL, Solo Air, TurnKey lockout, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 140mm travel - Rear: RockShox Deluxe RL, 210x52.5mm |
| Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree |
Wheels
| Hub | Front: Bontrager alloy, Boost110 - Rear: Bontrager alloy, Boost148 |
|---|---|
| Rims | SUNringlé Duroc 40 SL 28-hole |
| Tyres | Bontrager Chupacabra, Tubeless Ready, Inner Strength sidewalls, aramid bead, 27.5x2.80" |
| Wheels | Bontrager alloy hubs, Boost110 front, Boost148 rear; SUNringlé Duroc 40 SL 28-hole rims |
Brakes
| Brakes | Shimano M315 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|---|---|
| Saddle | Bontrager Evoke 1.5 |
| Seatpost | Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset |
| Stem | Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | High | 27.5" | 39.4 | 65.7 ° | 74.2 ° | 10.0 | 67.2 ° | 56.5 | 32.5 | 3.0 | 43.3 | 5.1 | 10.2 | 112.1 | 76.7 | 39.9 | 60.7 |
| 17.5 in | 16.5 in | High | 27.5" | 41.9 | 65.7 ° | 74.2 ° | 10.0 | 67.2 ° | 60.0 | 32.5 | 3.0 | 43.3 | 5.1 | 10.2 | 115.6 | 74.7 | 43.3 | 60.6 |
| 18.5 in | 17.5 in | High | 27.5" | 44.0 | 65.7 ° | 74.2 ° | 10.0 | 67.2 ° | 61.7 | 32.5 | 3.0 | 43.3 | 5.1 | 10.2 | 117.3 | 74.2 | 45.0 | 60.6 |
| 19.5 in | 18.5 in | High | 27.5" | 47.0 | 65.7 ° | 74.2 ° | 10.0 | 67.2 ° | 63.2 | 32.5 | 3.0 | 43.3 | 5.1 | 10.2 | 118.8 | 73.7 | 46.5 | 60.6 |
| 21.5 in | 20.5 in | High | 27.5" | 51.0 | 65.7 ° | 74.2 ° | 11.0 | 67.2 ° | 65.7 | 32.5 | 3.0 | 43.3 | 5.1 | 10.2 | 121.4 | 74.7 | 48.7 | 61.5 |
| 23 in | 22.0 in | High | 27.5" | 56.0 | 65.7° | 74.2° | 145.0 | 67.2° | 68.6 | 32.5 | 3.0 | 43.3 | 5.1 | 10.2 | 124.7 | 78.7 | 50.7 | 64.8 |
