Trek Fuel EX 7
Serie: Fuel EX - Year: 2020
Where to buy it
Specifications
Drivetrain

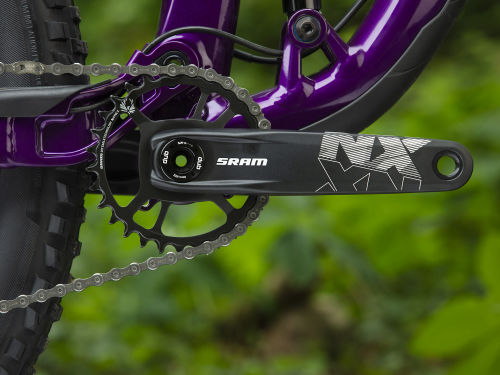

| Crank | SRAM NX Eagle, DUB, 30T steel ring, Boost (52mm chainline), 170mm length |
|---|---|

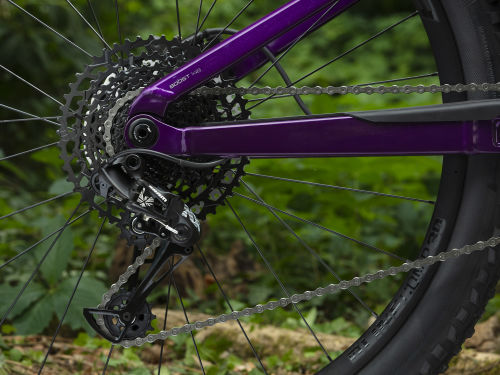

| Derailleurs | Rear: SRAM NX Eagle |
| Shifters | SRAM NX Eagle, 12-speed |
| Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Frameset
| Fork | RockShox 35 Gold, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel |
|---|---|

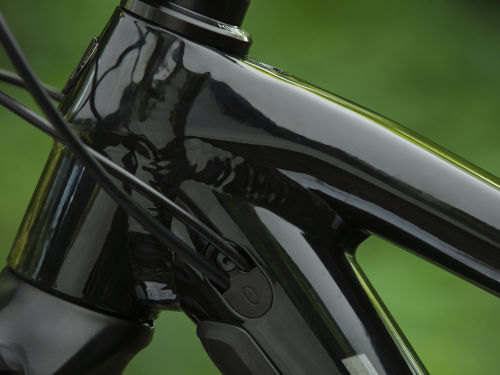

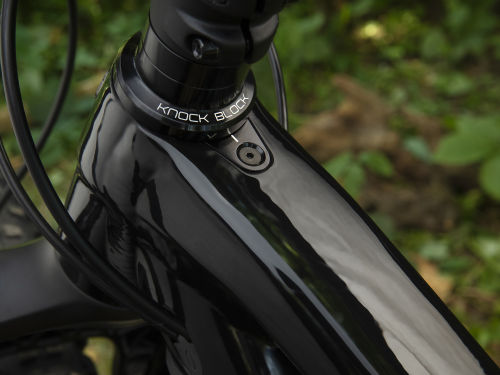

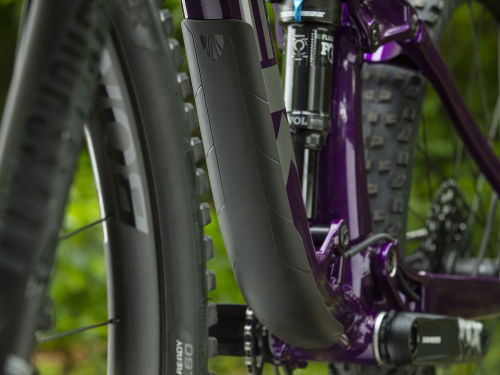

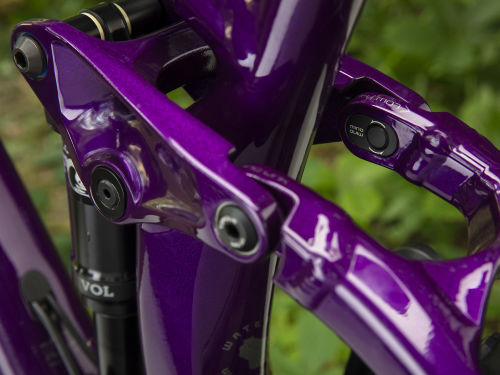

| Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

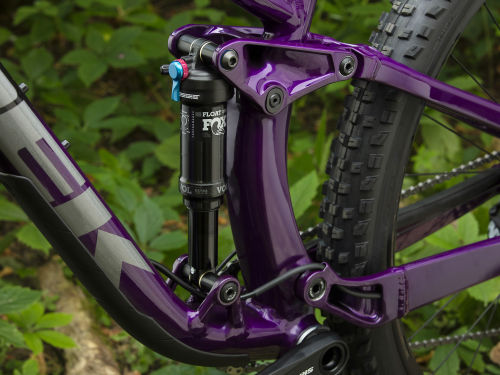

| Shoc | Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210x52.5mm |
| Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
Wheels

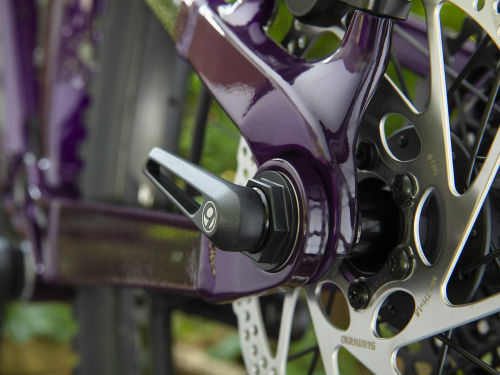

| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Spokes | DT Swiss Champion, J-Bend, Black |

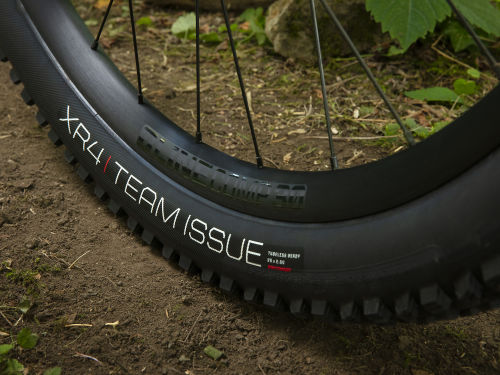

| Tyres | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" |
Components
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
