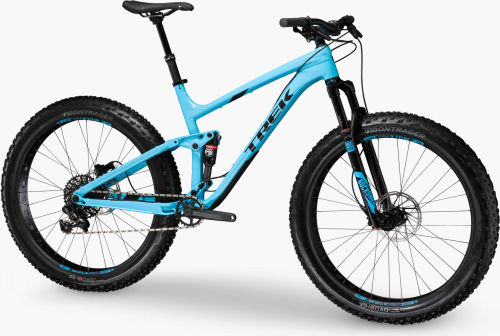

Trek Farley EX Farley EX 8
Serie: Farley EX - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PC 1130 |
|---|---|
| Crank | Race Face Aeffect, 28T Direct Mount Narrow-Wide |
| Derailleurs | Rear: SRAM GX, Roller Bearing Clutch |
| Shifters | SRAM GX, 11-speed |
| Cassette | SRAM XG-1150, 10-42, 11-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Full Floater, EVO link, E2 tapered head tube, internal derailleur and dropper routing, downtube guard, PF121, 197x12 hub spacing, 120mm travel |
|---|---|
| Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: RockShox Bluto RL, Solo Air, TurnKey lockout, E2 tapered steerer, 150x15mm Maxle Lite, 120mm travel - Rear: Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 7.25x1.875" |
| Bontrager Line, 35mm, 0 degree |
Wheels
| Hub | Front: Bontrager alloy sealed bearing, 150x15 front, 197x12 rear - Rear: Bontrager alloy sealed bearing, 150x15 front, 197x12 rear |
|---|---|
| Rims | SUNringlé Mulefüt 80mm 32-hole w/cutouts |
| Tyres | Bontrager Hodag, Tubeless Ready, Inner Strength sidewalls, aramid bead, 27.5x3.80" |
| Wheels | Bontrager alloy sealed bearing hubs; 150x15 front, 197x12 rear, SUNringlé Mulefüt 80mm 32-hole w/cutout rims |
Brakes
| Brakes | SRAM Level T hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line, 35mm, 15mm rise, 750mm width |
|---|---|
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | KS eThirty Integra, remote lever, 2-bolt head, 31.6mm, zero offset, internal routing |
| Stem | Bontrager Line, 35mm, 0 degree |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | High | 27.5" | 39.4 | 67.0° | 73.8° | 10.5 | 68.8° | 57.2 | 35.2 | 2.4 | 44.3 | 5.1 | 12.4 | 111.7 | 78.2 | 39.5 | 60.2 |
| 17.5 in | 16.5 in | High | 27.5" | 42.0 | 67.0° | 73.8° | 10.5 | 68.8° | 60.3 | 35.2 | 2.4 | 44.3 | 5.1 | 12.4 | 114.8 | 76.8 | 42.6 | 60.2 |
| 19.5 in | 18.5 in | High | 27.5" | 47.0 | 67.0° | 73.8° | 11.5 | 68.8° | 63.2 | 35.2 | 2.4 | 44.3 | 5.1 | 12.4 | 117.5 | 77.5 | 45.2 | 61.1 |
| 21.5 in | 20.5 in | High | 27.5" | 52.1 | 67.0° | 73.8° | 13.0 | 68.8° | 65.5 | 35.2 | 2.4 | 44.3 | 5.1 | 12.4 | 120.2 | 78.5 | 47.1 | 62.5 |
