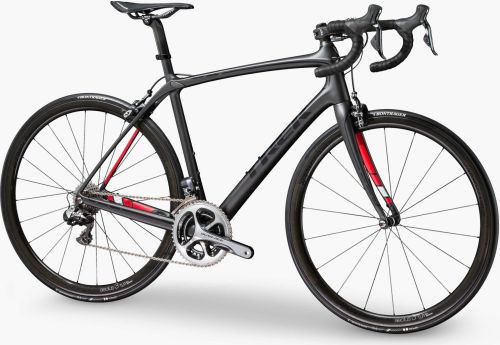

Trek Domane Domane 6.9
Serie: Domane - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | Shimano Dura-Ace |
|---|---|
| Crank | Shimano Dura-Ace, 50/34 (compact) |
| Derailleurs | Front: Shimano Dura-Ace Di2, braze-on - Rear: Shimano Dura-Ace Di2 |
| Shifters | Shimano Dura-Ace Di2, 11-speed |
| Cassette | Shimano Dura-Ace, 11-28, 11-speed |
Frameset
| Fork | Trek IsoSpeed full carbon, carbon E2 asymmetric steerer |
|---|---|
| Frame | 600 Series OCLV Carbon, IsoSpeed, Ride Tuned seatmast, Power Transfer Construction, hidden mudguard mounts, E2 tapered head tube, BB90, performance cable routing, DuoTrap compatible, 3S chain keeper |
| Headset | Cane Creek IS-8 carbon, integrated, sealed cartridge bearings, 1-1/8 top, 1.5" bottom |
| Bontrager XXX, OCLV Carbon, 31.8mm, 7-degree, w/Blendr computer & light mounts |
Wheels
| Tyres | Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x25c |
|---|---|
| Wheels | Bontrager Aeolus 3 D3 Tubeless Ready |
Brakes
| Brakes | Shimano Dura-Ace |
|---|
Components
| Handlebar | Bontrager Race X Lite IsoZone, OCLV carbon, VR-CF, 31.8mm |
|---|---|
| Saddle | Bontrager Paradigm XXX, carbon rails |
| Seatpost | Bontrager Ride Tuned carbon seatmast cap, 20mm offset |
| Stem | Bontrager XXX, OCLV Carbon, 31.8mm, 7-degree, w/Blendr computer & light mounts |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 cm | 54 cm | 50.0 | 73.7 ° | 16.0 | 71.3 ° | 54.2 | 8.0 | 42.0 | 5.3 | 5.9 | 101.0 | 75.4 | 37.4 | 57.5 | 64.0 | 73.5 |
| 58 cm | 58 cm | 54.8 | 73.0 ° | 19.5 | 72.0 ° | 56.7 | 7.8 | 42.5 | 4.8 | 6.0 | 102.2 | 79.6 | 38.0 | 61.1 | 69.0 | 78.5 |
