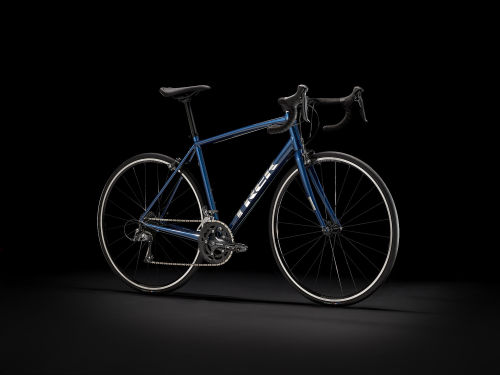

Trek Domane AL 2
Serie: Domane AL - Year: 2021
Where to buy it
Specifications

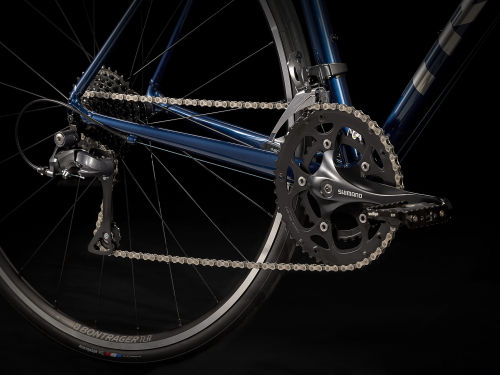

Drivetrain
| Chain | Shimano Sora HG71, 8-speed |
|---|---|
| Crank | Size: 47Shimano RS200, 50/34 (compact), 165 mm length - Size: 50, 52, 54Shimano RS200, 50/34 (compact), 170 mm length - Size: 56, 58, 60, 62Shimano RS200, 50/34 (compact), 175 mm length |
| Derailleurs | Front: Shimano Claris R2000, 31.8 mm clamp - Rear: Shimano Claris R2000, long cage, 34T max cog |
| Shifters | Shimano Claris R2000, 8-speed |
| Cassette | Shimano HG31, 11-32, 8-speed |
Frameset
| Fork | Domane carbon, straight alloy steerer, mudguard mounts, 5x100 mm QR |
|---|---|

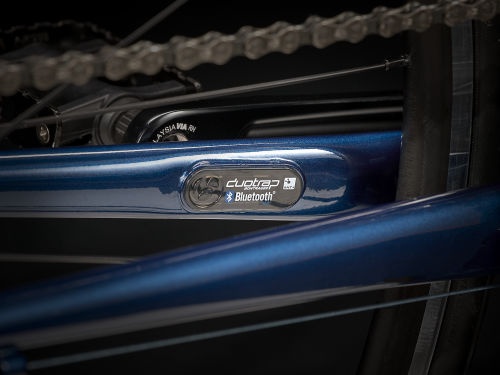

| Frame | 100 Series Alpha Aluminium, mudguard mounts, DuoTrap S-compatible, rim brake, 130x5 mm QR |

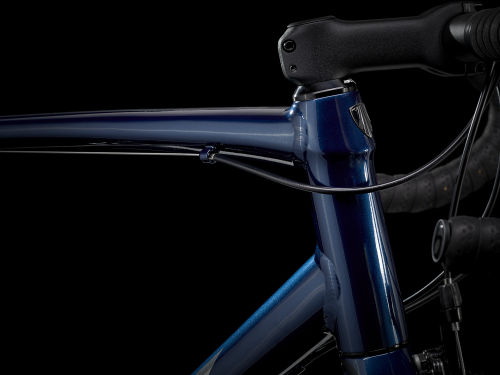

| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" |
| Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Formula TK-31 alloy, 5x100 mm QR - Rear: Formula TK-32 alloy, Shimano 8/9/10 freehub, 5x130 mm QR |
|---|---|
| Rims | Bontrager Tubeless Ready, 24-hole, 17 mm width, Presta valve |
| Spokes | 14 g stainless steel |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 c |
Brakes
| Brakes | Alloy dual-pivot |
|---|
Components

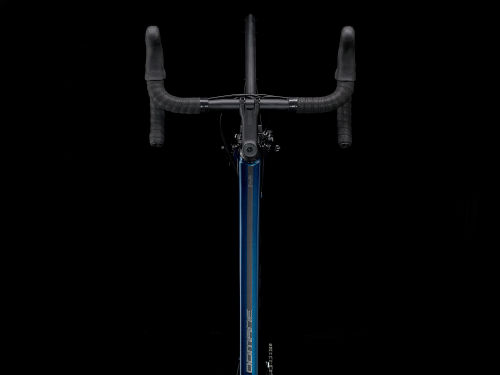

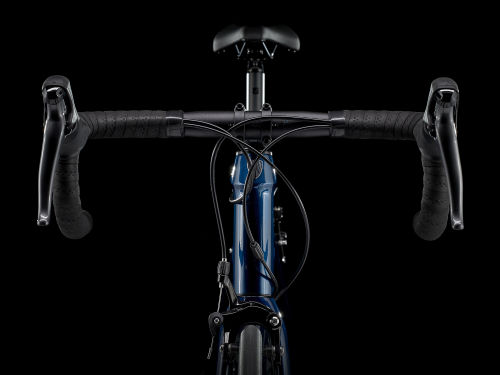

| Handlebar | Size: 47Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width - Size: 50, 52Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width - Size: 54, 56Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width - Size: 58, 60, 62Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Gel Cork tape |
| Saddle | Size: 47, 50, 52Bontrager P3 Verse Comp, steel rails, 155 mm width - Size: 54, 56, 58, 60, 62Bontrager P3 Verse Comp, steel rails, 145 mm width |
| Seatpost | Size: 47Bontrager alloy, 27.2 mm, 12 mm offset, 250 mm length - Size: 50, 52, 54, 56, 58, 60, 62Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

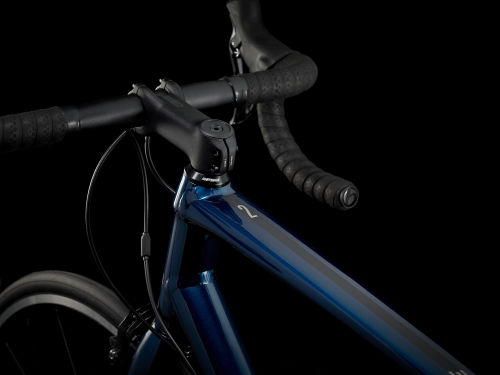

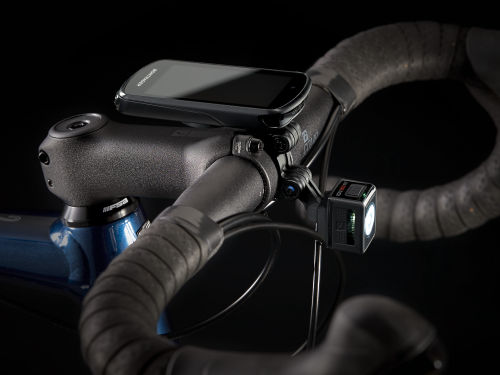

| Stem | Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
| Pedals | Wellgo nylon body, alloy cage |
