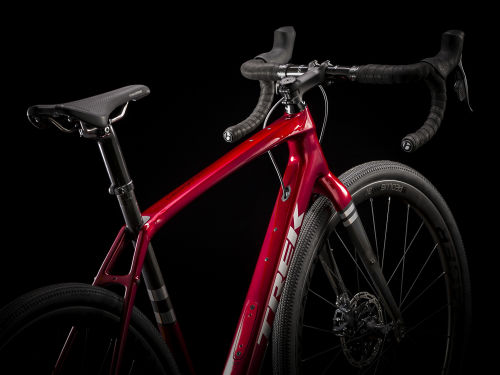

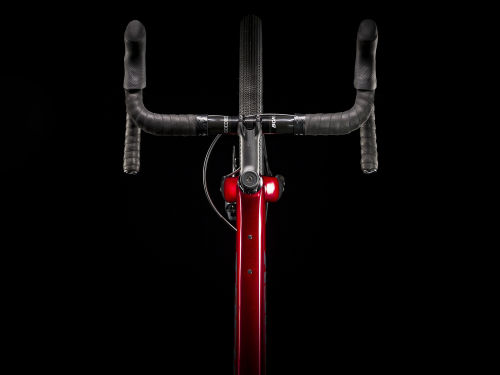

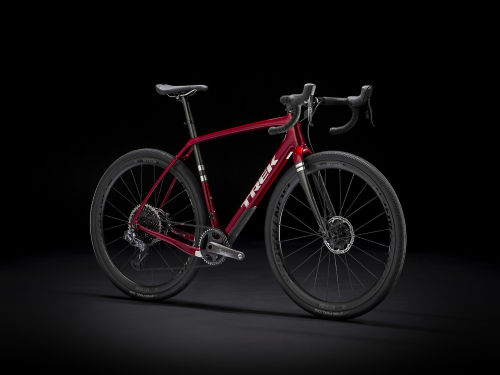

Trek Checkpoint SL 7
Serie: Checkpoint SL - Year: 2021
Where to buy it
Specifications

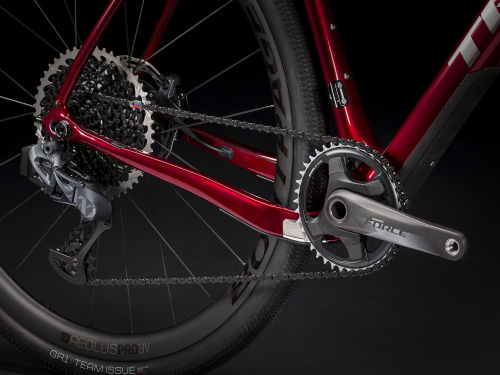

Drivetrain
| Chain | SRAM XX1 Eagle, 12-speed |
|---|---|
| Crank | Size: 49SRAM Force, 40T, 24 mm spindle, 165 mm length - Size: 52SRAM Force, 40T, 24 mm spindle, 170 mm length - Size: 54, 56SRAM Force, 40T, 24 mm spindle, 172.5 mm length - Size: 58, 61SRAM Force, 40T, 24 mm spindle, 175 mm length |
| Derailleurs | Rear: SRAM XX1 Eagle AXS |
| Cassette | SRAM XG-1295 Eagle, 10-50, 12-speed |
Frameset
| Fork | Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
|---|---|

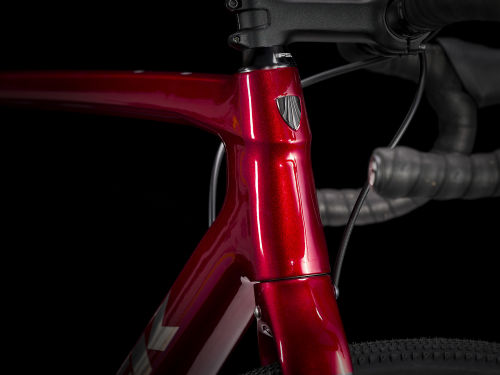

| Frame | 500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat-mount disc, horizontal sliding dropouts, 142x12 mm thru-axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Size: 49Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Tyres | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c |
|---|
Brakes
| Brakes | SRAM Force eTap AXS hydraulic disc |
|---|
Components
| Handlebar | Size: 49, 52Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 40 cm width - Size: 54, 56Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width - Size: 58, 61Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Bontrager Arvada Elite, stainless steel rails, 138 mm width |
| Seatpost | Size: 49, 52, 54, 56Bontrager carbon seat mast cap, 20 mm offset, short length - Size: 58, 61Bontrager carbon seat mast cap, 20 mm offset, tall length |
| Stem | Size: 49Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
