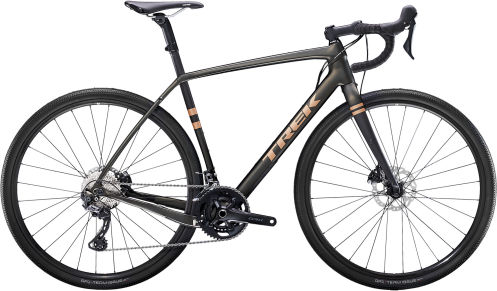

Trek Checkpoint SL 5
Serie: Checkpoint - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano 105 HG601, 11-speed |
|---|---|
| Crank | Size: 49Shimano GRX RX600, 46/30, 165 mm length - Size: 52Shimano GRX RX600, 46/30, 170 mm length - Size: 54, 56Shimano GRX RX600, 46/30, 172.5 mm length - Size: 58, 61Shimano GRX RX600, 46/30, 175 mm length |
| Derailleurs | Front: Shimano GRX RX810, braze-on - Rear: Shimano GRX RX810, long cage, 34T max cog |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
Frameset
| Fork | Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
|---|---|
| Frame | 500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat-mount disc, horizontal sliding dropouts, 142x12 mm thru-axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|
| Rims | Bontrager Tubeless Ready, 28-hole, 17 mm width, Presta valve |
| Tyres | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c |
Brakes
| Brakes | Shimano RX400 hydraulic disc |
|---|
Components
| Handlebar | Size: 49Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width - Size: 52Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width - Size: 54, 56Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width - Size: 58, 61Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Bontrager Montrose Comp, steel rails, 138 mm width |
| Seatpost | Size: 49, 52, 54, 56Bontrager alloy seat mast cap, 10 mm offset, short length - Size: 58, 61Bontrager alloy seat mast cap, 10 mm offset, tall length |
| Stem | Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
