Trek Allant+ 9.9 Stagger
Serie: Allant+ - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano SLX M7100, 12-speed |
|---|---|
| Crank | Size: S, MProWheel alloy, 170 mm - Size: LProWheel alloy, 175mm |
| Derailleurs | Rear: Shimano XT M8120, long cage, Shadow Plus design |
| Shifters | Shimano XT M8100, 12-speed |
| Cassette | Shimano SLX M7100, 10-45T, 12-speed |
Frameset
| Fork | Allant Carbon fork, post-mount disc, 100x15 mm thru-axle |
|---|---|
| Frame | OCLV Carbon, Removable Integrated Battery, Range Boost compatible, Motor Armour, internal cable routing, post-mount disc, 12 mm thru axle |
| Size: SAllant+ forged alloy, integrated cable routing, 45mm length, 31.8mm clamp - Size: MAllant+ forged alloy, integrated cable routing, 75mm length, 31.8mm clamp - Size: LAllant+ forged alloy, integrated cable routing, 95mm length, 31.8mm clamp |
Wheels
| Hub | Front: Shimano Deore XT M8110, CenterLock disc, 15 mm thru-axle - Rear: Shimano Deore XT, 32h, centerlock disc, 12mm thru-axle |
|---|---|
| Rims | Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve |
| Tyres | Size: S, M, LBontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.4" - Size: S, M, LBontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.40" |
Brakes
| Brakes | Size: S, M, LShimano MT520 4-piston hydraulic disc, post-mount, 180 mm rotor - Size: S, M, LShimano MT520 4-piston hydraulic disc, 180 mm rotor |
|---|
Components
| Handlebar | Bontrager Pro Lowriser, carbon, 31.8 mm, 15 mm rise, 690 mm width |
|---|---|
| Grips | Bontrager Satellite Elite, alloy lock-on |
| Saddle | Bontrager Commuter Comp |
| Seatpost | Size: S, MBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: LBontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Stem | Size: SAllant+ forged alloy, integrated cable routing, 45mm length, 31.8mm clamp - Size: MAllant+ forged alloy, integrated cable routing, 75mm length, 31.8mm clamp - Size: LAllant+ forged alloy, integrated cable routing, 95mm length, 31.8mm clamp |
| Pedals | Track-style alloy |
E-System

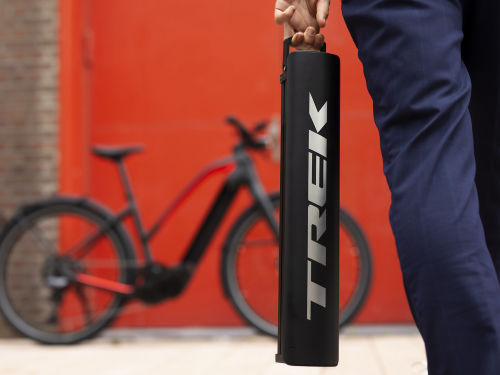

| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch standard 4A (220-240 V) charger |
| Controller | Bosch Kiox with Anti-theft solution |
| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
