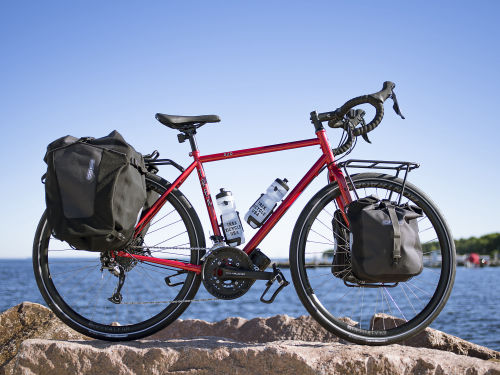

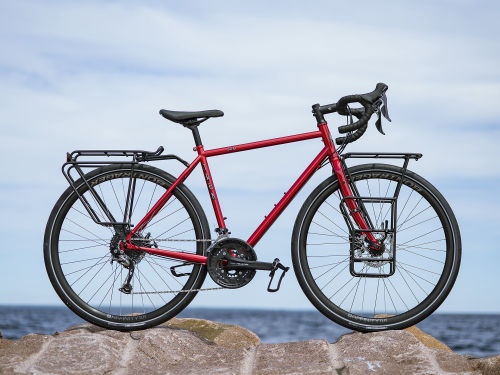

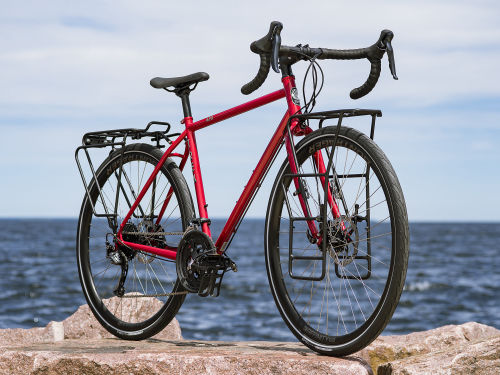

Trek 520 Disc
Serie: 520 - Year: 2021
Where to buy it
Specifications

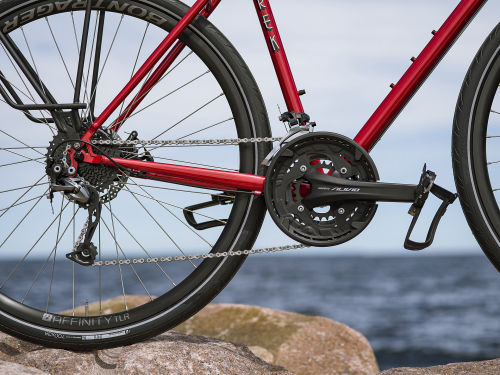

Drivetrain
| Chain | KMC X9 |
|---|---|
| Crank | Size: 48, 51Shimano Alivio T4060, 48/36/26, 2-piece w/chain guard, 170 mm length - Size: 54, 57, 60, 63Shimano Alivio T4060, 48/36/26, 2-piece w/chain guard, 175 mm length |
| Derailleurs | Front: Shimano Sora R3030, 34.9 mm (w/28.6 adapter) clamp - Rear: Shimano Alivio M4000, long cage, 36T max cog |
| Shifters | Size: 48, 51, 54, 57, 60, 63Shimano Sora R3000, 9-speed - Size: 48, 51, 54, 57, 60, 63Shimano Sora R3030, 3-speed |
| Cassette | Shimano HG200, 11-36, 9-speed |
Frameset

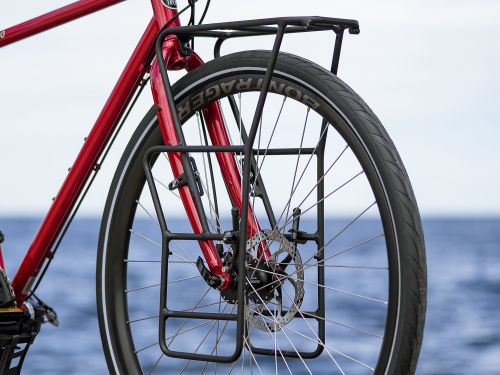

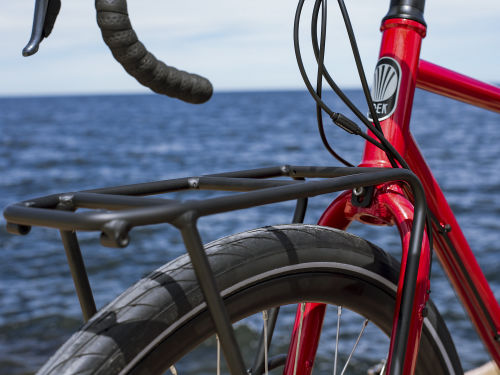

| Fork | 520 alloy disc touring, rack mounts, 100x5 mm ThruSkew |
|---|---|

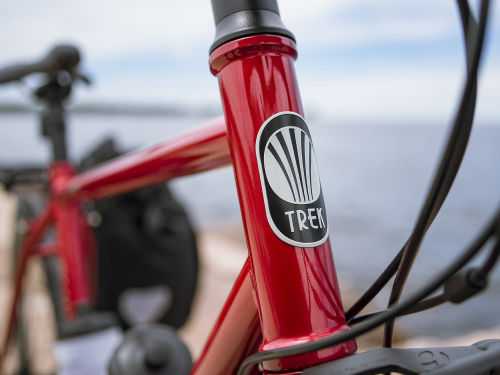

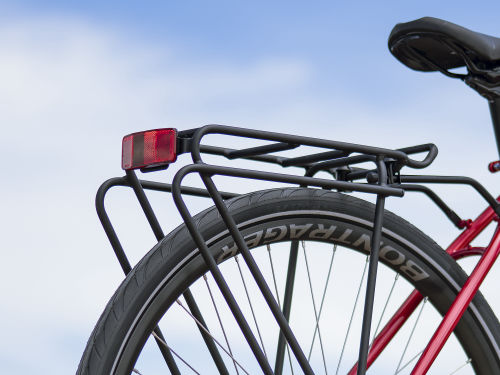

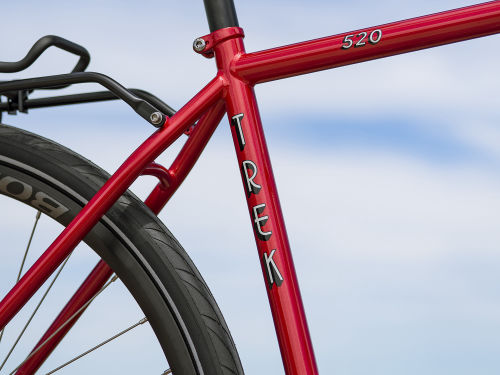

| Frame | Trek butted chromoly disc touring, rack and mudguard mounts, 135x5 mm QR |
| Headset | 1-1/8" threadless, sealed cartridge bearings |
| Size: 48Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 51Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 54, 57Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 63Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Shimano M475, 6-bolt disc, 100x5 mm QR - Rear: Shimano M475, 6-bolt disc, 135x5 mm QR |
|---|---|

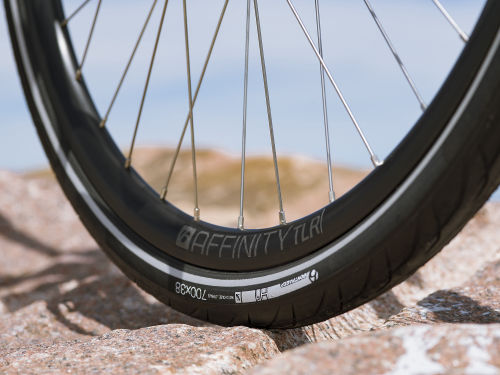

| Rims | Bontrager Affinity Disc, Tubeless Ready, 36-hole, 21 mm width, presta valve |
| Spokes | 14 g stainless steel, silver |
| Tyres | Bontrager H1 Hard-case Ultimate, 700x38c w/reflective sidewall |
Brakes
| Brakes | TRP Spyre C 2.0 mechanical disc, 160 mm rotor |
|---|
Components

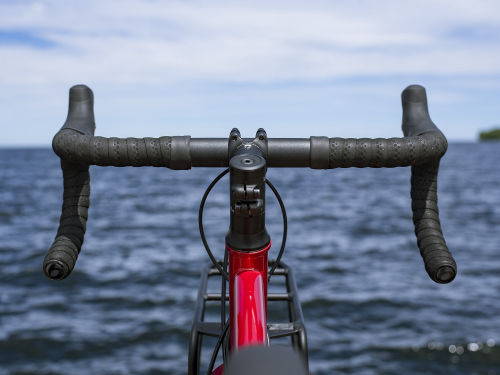

| Handlebar | Size: 48Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width - Size: 51, 54Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width - Size: 57, 60, 63Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Gel Cork tape |
| Saddle | Bontrager Evoke |
| Seatpost | Size: 48Bontrager alloy, 27.2 mm, 12 mm offset, 250 mm length - Size: 51, 54, 57, 60, 63Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Stem | Size: 48Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 51Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 54, 57Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 63Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
| Pedals | Wellgo nylon body, alloy cage |
