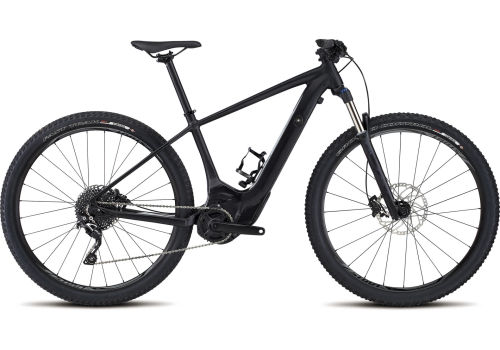

Specialized Turbo Levo Hardtail Turbo Levo Hardtail 29
Serie: Turbo Levo Hardtail - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PC1031, 11-speed w/PowerLink |
|---|---|
| Crank | Custom alloy crankarms |
| Derailleurs | Rear: Shimano SLX, Shadow Plus, SGS cage, 10-speed |
| Shifters | Shimano Deore, RapidFire Plus, 10-speed |
| Cassette | Sunrace, 10-speed, 11-40t |
Frameset
| Fork | RockShox Recon Silver RL 29/27.5+, 15x110mm Maxle Lite thru-axle, Solo Air spring, adjustable rebound and lockout, 110/120mm of travel (size specific) |
|---|---|
| Frame | Specialized M5 Premium Aluminum, Trail HT Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing |
| Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp |
Wheels
| Hub | Front: Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h - Rear: Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
|---|---|
| Rims | Specialized 29, alloy disc, 23mm inner width, 24/28h |
| Spokes | Stainless, 14g, black |
| Tyres | Front: Ground Control, Control casing, 29x2.3", 60TPI, Aramid folding bead, 2Bliss Ready - Rear: Fast Trak, Control casing, 29x2.2", 60TPI, Aramid folding bead, 2Bliss Ready |
Brakes
| Brakes | Front: Shimano Deore BL-M506, hydraulic disc, resin pad, 200mm rotor - Rear: Shimano Deore BL-M506, hydraulic disc, resin pad, 180mm rotor |
|---|
Components
| Handlebar | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width |
|---|---|
| Grips | Specialized Body Geometry XCT Men's, lock-on |
| Saddle | Body Geometry mountain, steel rails, 143mm |
| Seatpost | Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware |
| Stem | Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp |
| Pedals | Alloy platform |
geometry
| Seat Tube Length, Center to Top | 505mm |
|---|---|
| Top Tube Length, Horizontal | 655mm |
| Bottom Bracket Drop | 55mm |
| Bottom Bracket Height | 308mm |
| Chainstay Length | 450mm |
| Seat Tube Angle, Effective | 73° |
| Head Tube Angle | 67° |
| Wheel Base | 1213mm |
| Standover Height | 838mm |
| Head Tube Length | 130mm |
| Stack | 644mm |
| Reach | 458mm |
| Fork Length (full) | 530mm |
| Crank Length | 170mm |
| Handlebar Width | 750mm |
| Stem Length | 60mm |
| Saddle Width | 143mm |
| Seat Post Length | 400mm |
