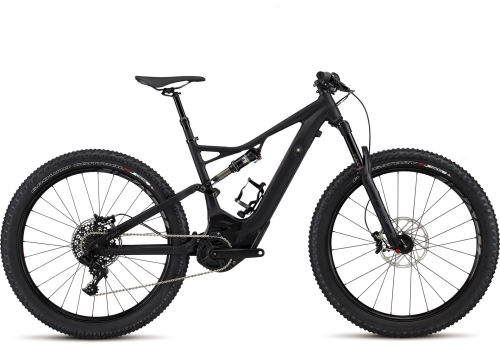

Specialized Turbo Levo FSR Turbo Levo FSR Comp 6Fattie
Serie: Turbo Levo FSR - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PCX1, 11-speed w/PowerLink |
|---|---|
| Crank | Custom alloy crankarms |
| Derailleurs | Rear: SRAM GX, long cage, 11-speed |
| Shifters | SRAM GX, 11-speed, trigger |
| Cassette | SRAM XG-1150, 11-speed, 10-42t |
Frameset
| Fork | RockShox Yari RC 29/27.5+, Solo Air spring, adjustable compression and rebound, 15x110mm Maxle Ultimate thru-axle, 51mm offset, 140mm travel |
|---|---|
| Frame | Specialized M5 Premium Aluminum, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel |
| Shoc | Rear: FOX FLOAT Performance, Rx Trail Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 197x47.6mm |
| Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise |
Wheels
| Hub | Front: Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h - Rear: Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
|---|---|
| Spokes | DT Swiss Industry, stainless |
Brakes
| Brakes | Front: SRAM Guide R, hydraulic disc, metallic pads, Guide S4 4-piston caliper, 200mm rotor - Rear: SRAM Guide R, hydraulic disc, metallic pads, Guide S4 4-piston caliper, 200mm rotor |
|---|
Components
| Handlebar | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width |
|---|---|
| Grips | Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness |
| Saddle | Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel |
| Stem | Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise |
geometry
| Seat Tube Length, Center to Top | 520mm |
|---|---|
| Top Tube Length, Horizontal | 650mm |
| Bottom Bracket Drop | 21mm |
| Bottom Bracket Height | 342mm |
| Chainstay Length | 459mm |
| Seat Tube Angle, Actual | 69.3° |
| Seat Tube Angle, Effective | 73.6° |
| Head Tube Angle | 66.5° |
| Wheel Base | 1246mm |
| Standover Height | 781mm |
| Head Tube Length | 150mm |
| Stack | 646mm |
| Reach | 460mm |
| Crank Length | 170mm |
| Handlebar Width | 750mm |
| Stem Length | 60mm |
| Saddle Width | 143mm |
| Seat Post Length | 430mm |
