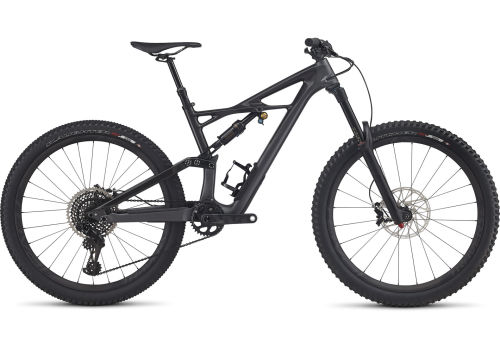

Specialized Enduro S-WORKS ENDURO 650B

Serie: Enduro - Year: 2017
Specialized

Where to buy it

Specifications

Drivetrain

ChainSRAM XX1 Eagle, black, 12-speed w/PowerLink
CrankSRAM XX1 Eagle, carbon, 24mm spindle, 52mm chainline, 32T
DerailleursRear: SRAM XX1 Eagle, 12-speed
ShiftersSRAM XX1 Eagle, 12-speed, trigger
CassetteSRAM XG-1295, 12-speed, 10-50t

Frameset

ForkRockShox Lyrik RCT3 27.5, Solo Air, compression and rebound and threshold adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 46mm offset, 170mm travel
FrameFACT 11m, X-Wing layout, full carbon chassis and rear end, All-Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 170mm of travel
ShocRear: Custom Öhlins STX, Single Tube design, Rx All-Mountain Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 216x57mm
Syntace MegaForce 2, 6-degree, 31.8mm bar clamp

Wheels

HubFront: Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h - Rear: Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
RimsRoval Traverse SL 650, hookless carbon, 30mm inner width, 24/28h, tubeless ready
SpokesDT Swiss Revolution
TyresFront: Butcher, GRID casing, 650x2.3", 60TPI, Aramid folding bead, 2Bliss Ready - Rear: Slaughter, GRID casing, 650x2.3", 60TPI, Aramid folding bead, 2Bliss Ready

Brakes

BrakesFront: SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 200mm rotor - Rear: SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 180mm rotor

Components

HandlebarSpecialized DH, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
GripsSpecialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SaddleBody Geometry Henge Expert, hollow titanium rails, 143mm
SeatpostCommand Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
StemSyntace MegaForce 2, 6-degree, 31.8mm bar clamp
PedalsResin Test Ride w/toe clips

geometry

Stack 613mm
Reach 470mm
Head-Tube Length 125mm
Head-Tube Angle 65.5°
B-B Height (650x2.3) 345mm
B-B Height (650x2.6) 350mm
B-B Drop 10.5mm
Trail 106mm
Fork Length (full) 559mm
Fork Rake/Offset 51mm
Front-Center 801mm
Chain-Stay Length 425mm
Wheelbase 1225mm
Top-Tube Length (horizontal) 632mm
Bike Stand-Over Height 796mm
Seat-Tube Length 521mm
Seat-Tube Angle 75°
